DESCRIPTION

9/25

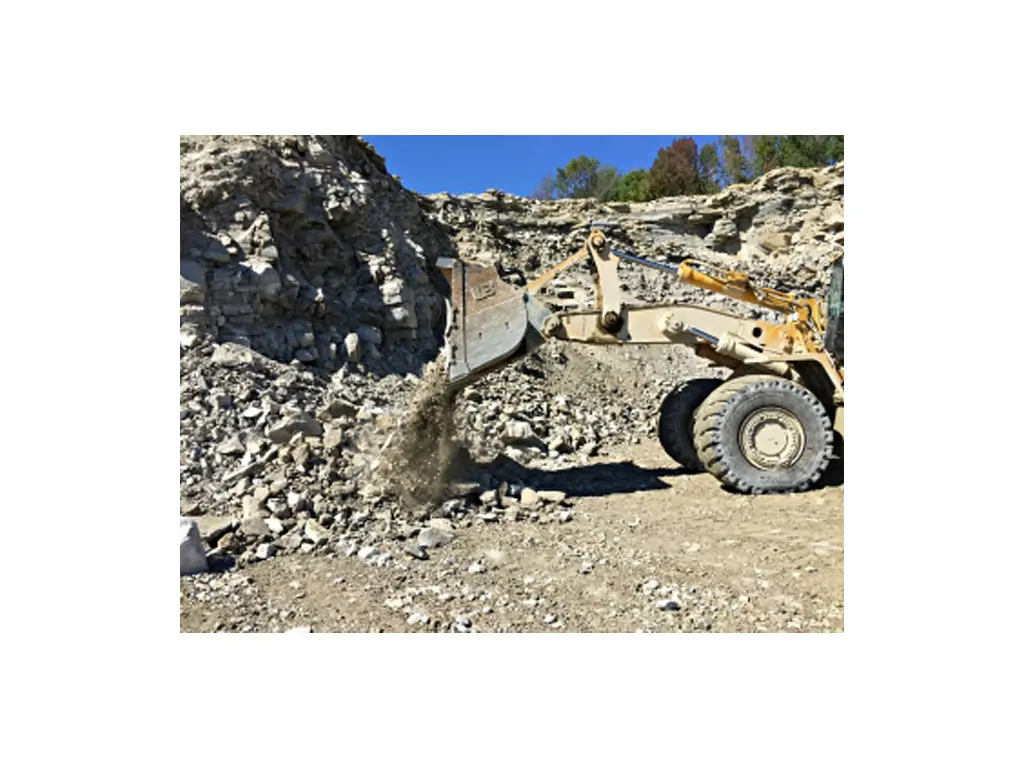

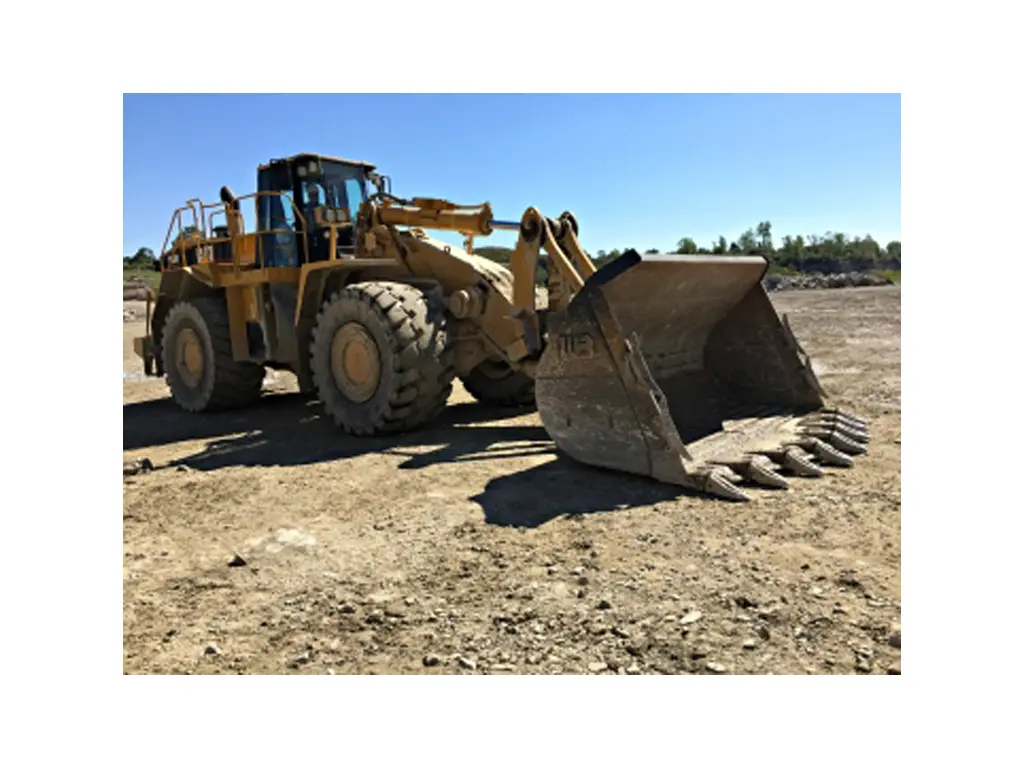

SEVERE DUTY ROCK BUCKET

Recommended Applications

Specifically designed to penetrate severe digging applications or re-handle loose rock.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

2.00 cu. yd to 10.00 cu. yd. Widths range from 100″ – 144″. Other capacities and widths are available upon quotation. Available in spade nose or straight edge options.

Additional Features

Available with replaceable bolt-on cutting edge upon request. Weld-on teeth are standard equipment. Other tooth selections available. Easily mounts up to Werk-Brau front coupler or available with pin-up connection. Special designs and capacities are available.

• Internal double bottom
• Lifting loops
• Bolt on side cutters standard
• Slotted spill guard for better vision
• Standard with weld on teeth, shrouds and segments
•  Bolt on cutting edge optional replacement

SPECIFICATIONS

PART #	WIDTH	# OF TEETH	CAPACITY	WEIGHT
WL3.5R105-3.00	105″	8	3.00	4,200
WL3.5R105-3.00SP	105″	8	3.00	4,600
WL3.5R105-3.50	105″	8	3.50	4,600
WL3.5R105-3.50SP	105″	8	3.50	5,000

FITS

CLASS 3.5

CLASS 3.5 (30,000 – 33,000 LBS)	MODEL
CASE	721G
CAT	938, IT38
DEVELON	DL250-7, DL280-7
HITACHI	ZW180
HYUNDAI	HL955, HL757
JCB	436, 437
JOHN DEERE	624
KOMATSU	WA320
KUBOTA
LIEBHERR	L546, L550X
LINK-BELT
NEW HOLLAND	LW170
SANY
TAKEUCHI
VOLVO	L90
WACKER NEUSON
YANMAR
