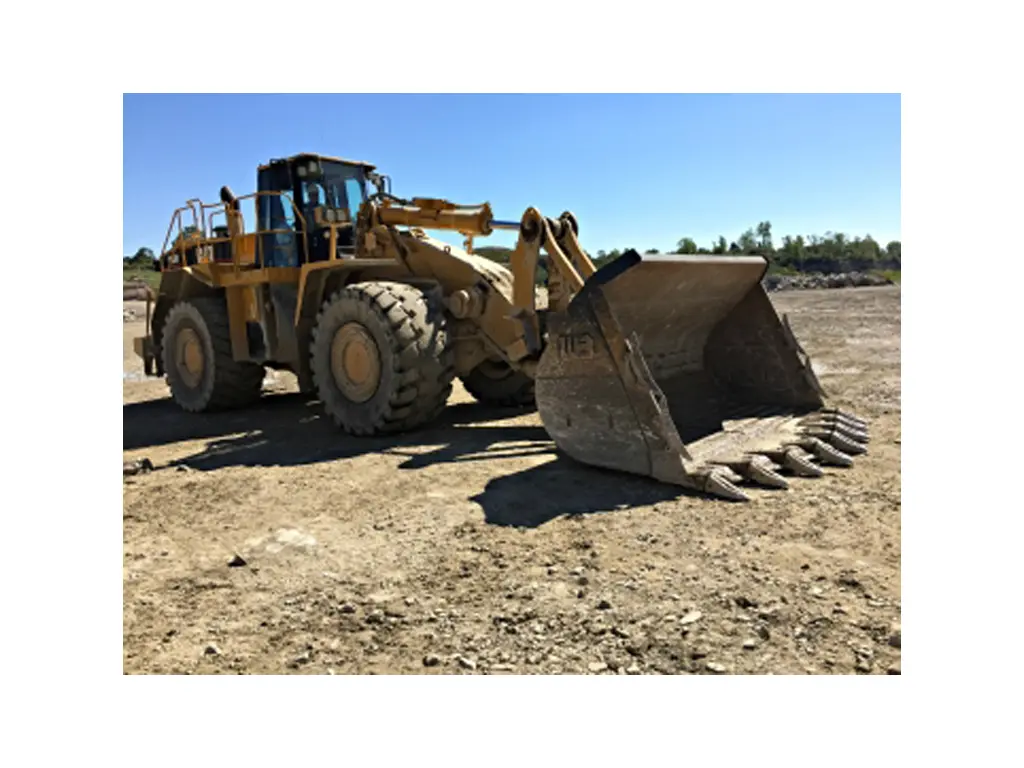

SEVERE DUTY ROCK BUCKET

Recommended Applications

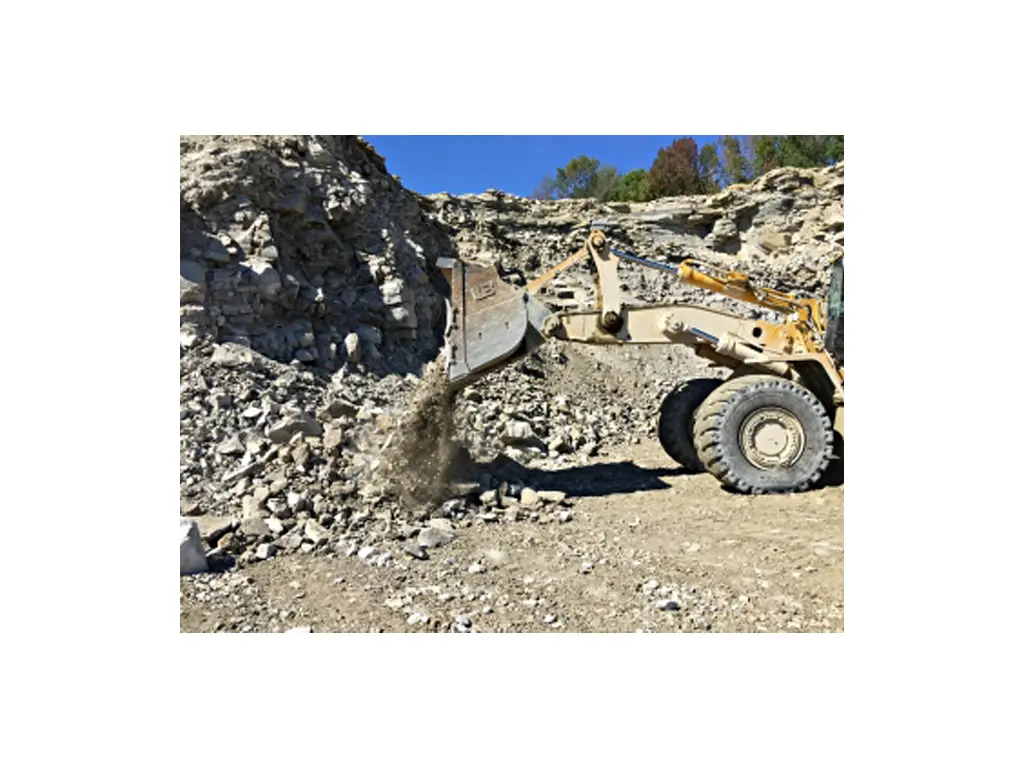

Specifically designed to penetrate severe digging applications or re-handle loose rock.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

2.00 cu. yd to 10.00 cu. yd. Widths range from 100″ – 144″. Other capacities and widths are available upon quotation. Available in spade nose or straight edge options.

Additional Features

Available with replaceable bolt-on cutting edge upon request. Weld-on teeth are standard equipment. Other tooth selections available. Easily mounts up to Werk-Brau front coupler or available with pin-up connection. Special designs and capacities are available.

• Internal double bottom
• Lifting loops
• Bolt on side cutters standard
• Slotted spill guard for better vision
• Standard with weld on teeth, shrouds and segments
•  Bolt on cutting edge optional replacement

SPECIFICATIONS

PART #	WIDTH	# OF TEETH	CAPACITY	WEIGHT
WL7R144-8	144″	9	8.00	13,500
WL7R144-8SP	144″	9	8.00	14,000
WL7R144-9	144″	9	9.00	14,200
WL7R144-9SP	144″	9	9.00	14,700
WL7R144-10	144″	9	10.00	15,000
WL7R144-10SP	144″	9	10.00	15,550

FITS

CLASS 7

CLASS 7 (70,000 – 85,000 LBS)	MODEL
CASE
CAT	988K, 988G
DEVELON
HITACHI	ZW550
HYUNDAI
JCB
JOHN DEERE	944X HI-LIFT, 944K HI-LIFT
KOMATSU	WA600-8
KUBOTA
LIEBHERR
LINK-BELT
NEW HOLLAND
SANY
TAKEUCHI
VOLVO	L350
WACKER NEUSON
YANMAR
