Description
DESCRIPTION
9/25

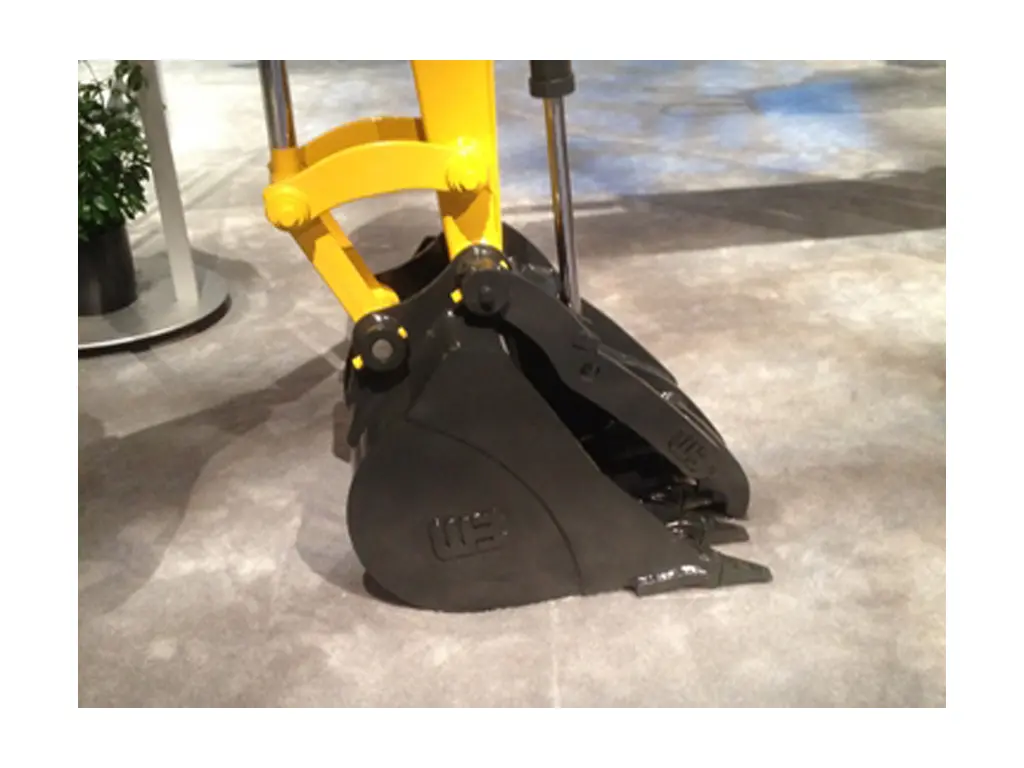

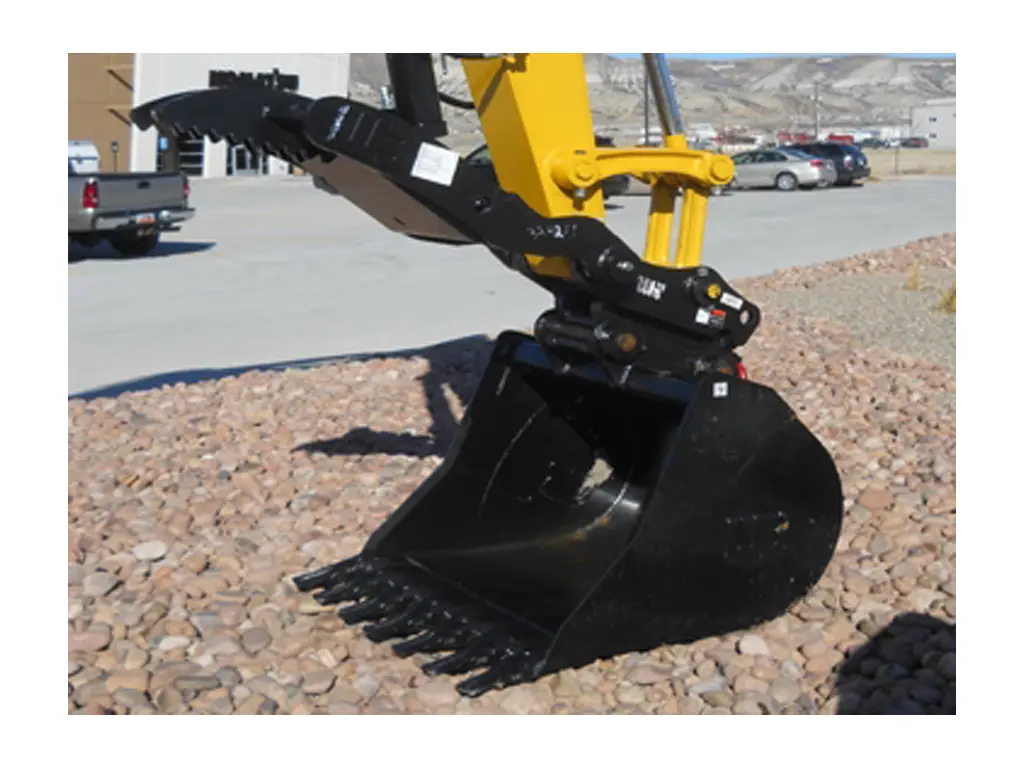

MAIN PIN HYDRAULIC THUMBS
Recommended Applications

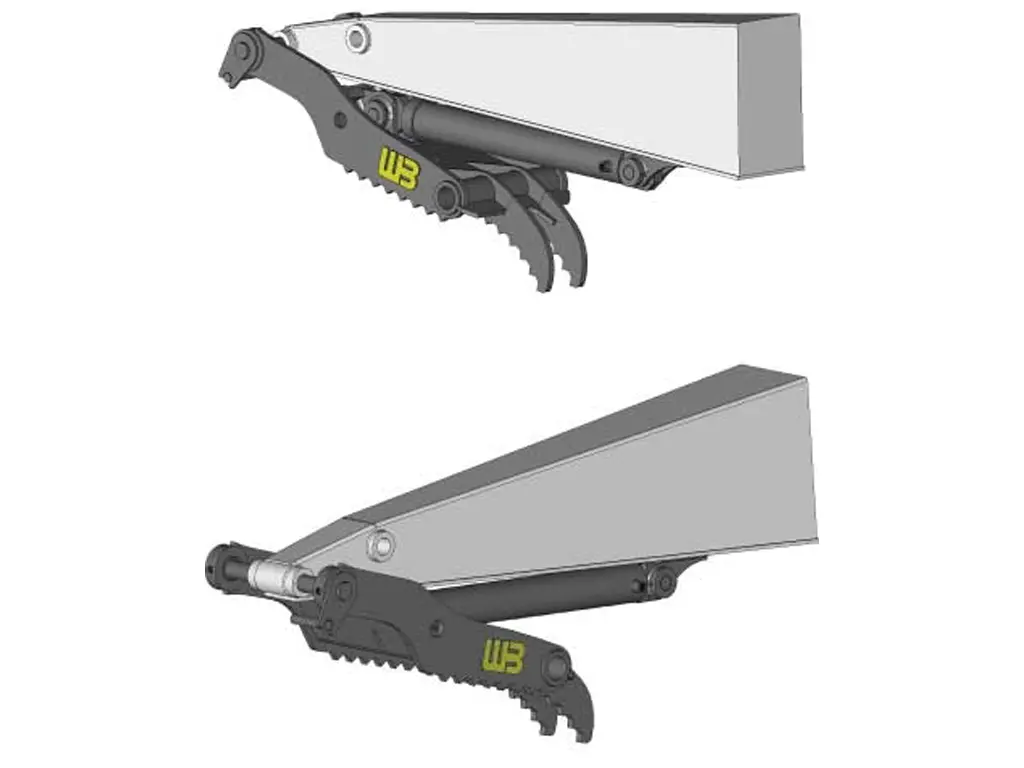

Specifically designed to aid in handling or loading irregular shaped objects, debris, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. Not recommended for prying.
Quality Construction
High strength steel is used throughout.
Standard Sizes
Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.
Additional Features
Additional tines optional. Hydraulic or Rigid style available upon request. Special designs are available, please request a quote from your local dealer.
Thumb Lock kit Available – call for price
SPECIFICATIONS
| PART # | DESCRIPTION | WEIGHT |
| EZG05MT-2H | 2 Tine main pin thumb (Hydraulic) | 100 |
| EZG05MT-3H | 3 Tine main pin thumb (Hydraulic) | 100 |
| EZG05MT-2R | 3 Tine main pin thumb (Rigid) | 100 |
| EZG05MT-3R | 3 Tine main pin thumb (Rigid) | 100 |
FITS
MINI 05
| MAKE / WEIGHT CLASS | MINI 05 (2,100 – 4,900 LBS.) |
| BOBCAT | 323 |
| CASE | CX17B |
| CAT | 301.5, 301.7CR, 301.8, 302CR |
| DOOSAN | S015 |
| DITCH WITCH | XT850 |
| GEHL | GE153 |
| HITACHI | EX17U |
| HYUNDAI | R16 |
| IHI | 15NX-2 |
| JCB | 8018 |
| JOHN DEERE | 17G |
| KOBELCO | 17SR |
| KOMATSU | PC18MR-3 |
| KUBOTA | KX018, U17 |
| LINK BELT | ME1503 |
| MUSTANG | E15, E18B |
| NEW HOLLAND | SY16 |
| SANY | TB016, TB216 |
| TAKEUCHI | EC15B |
| VOLVO | EC20B |
| YANMAR | Vio17, SV08-1, Vio20-3 |
| WACKER NEUSON | EZ17, 1404, ET20 |
