DESCRIPTION

7/25

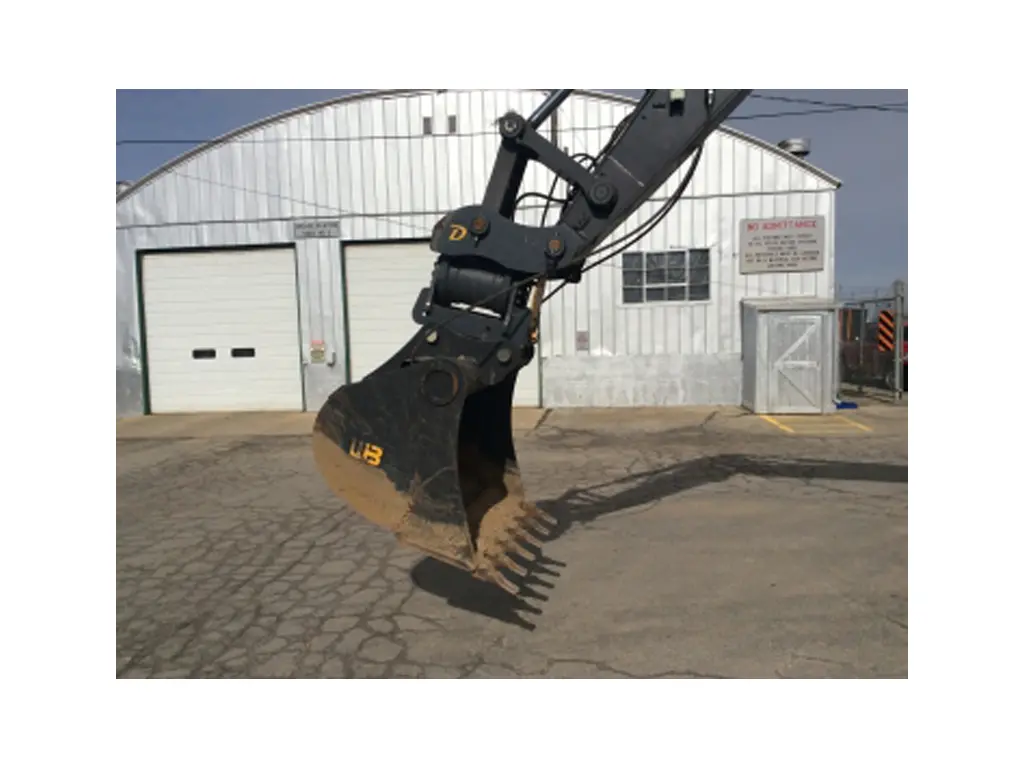

POWERGRIP BUCKET

Recommended Applications

Specifically designed to enhance a machines grading, trenching, or clamshell capabilities with precise control. Capable of 120 degrees of jaw movement.

Quality Construction

High strength steel is used throughout the weldment. Hardened greasable bushings are utilized at all pivot points. High quality actuator used inside cross tube with no exposed cylinders. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. Includes a holding force of approximately 3x clamping force, while maintaining constant operating speed.

Standard Sizes

Widths range from 24″ and 60″ pending machine class. Capacities range from 0.46 cu yd up to 1.50 cu yd.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available.

Features

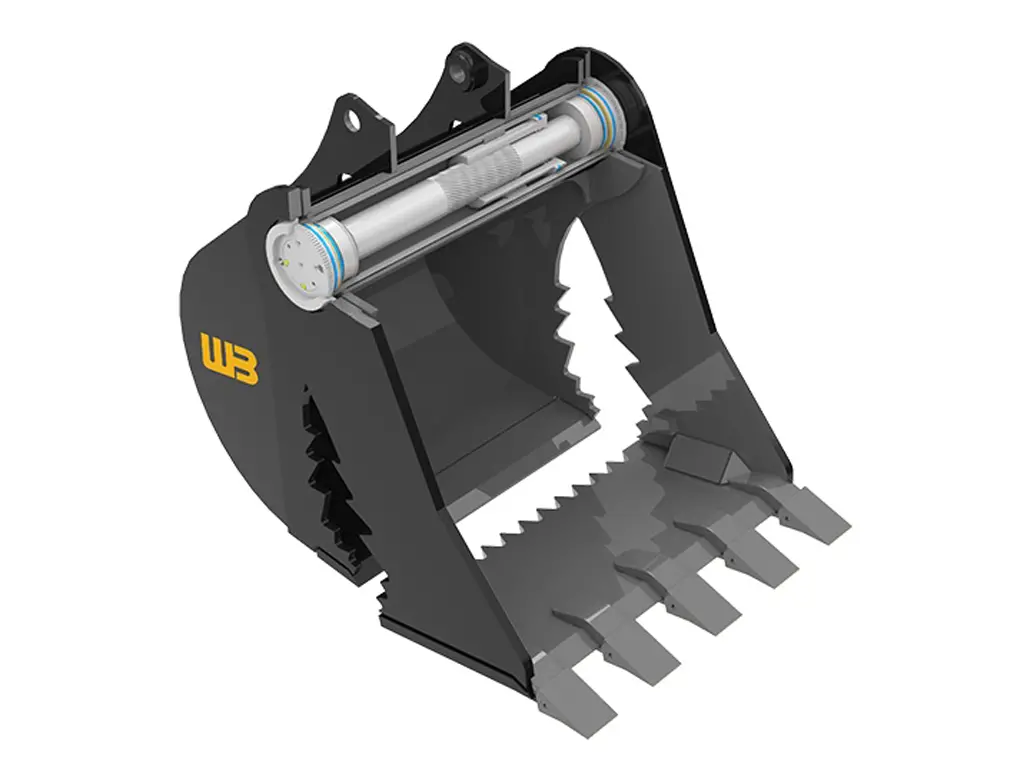

• Enclosed rotary actuator hinge in cross-tube
• No obstruction in jaw or bucket shell
• No exposed cylinders or other external moving parts
• 120° of jaw movement
• Consistent clamping force through jaw’s full range of motion
• Equal force exerted at both sides prevents jaw twisting
• Standard OEM lugging
• Quick-coupler compatible
• Uses existing auxiliary hydraulic circuit
• Clamping force approximately 3x of standard thumb

SPECIFICATIONS

PART #	WIDTH	CAPACITY	# OF TEETH	WEIGHT
PG07-24-14T	24″	0.46	4	1,330
PG07-30-14T	30″	0.62	4	1,460
PG07-36-14T	36″	0.77	5	1,670

 MACHINE FITS

12 METRIC TONS

MAKE / WEIGHT CLASS	12MT (24,000 – 33,000 LBS.)
CASE	CX130, CX145D, CX140E
CAT	311, 313, 314F, 315F (A-Linkage)
DOOSAN	DX140LC-5, DX140LCR-5, DX140W-5
HITACHI	ZX130
HYUNDAI	HX140, HX145, HX220 LR
JOHN DEERE	130G, 135G, 130P
KOBELCO	SK140, ED160
KOMATSU	PC138
LIEBHERR
LINK BELT	130X4, 145X4, 210X4 LR
SANY	SY135, SY235 LR, SY265 LR
TAKEUCHI	TB1140, TB2150
VOLVO	EW140, EC140, ECR145
