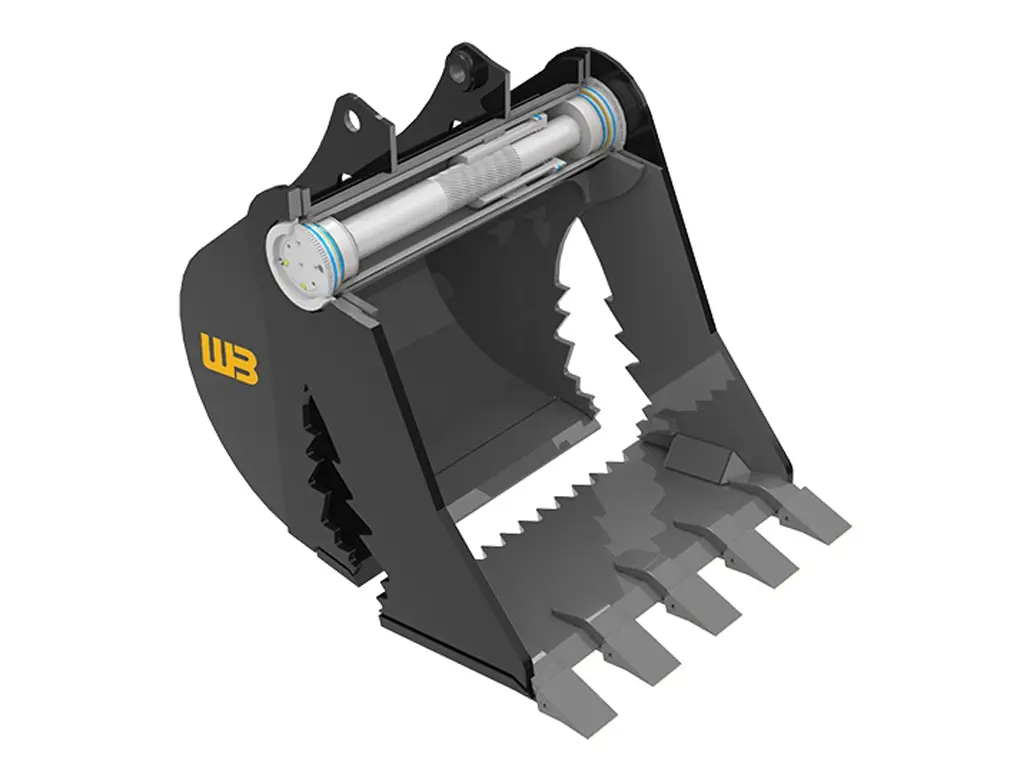

POWERGRIP BUCKET
Recommended Applications
Specifically designed to enhance a machines grading, trenching, or clamshell capabilities with precise control. Capable of 120 degrees of jaw movement.
Quality Construction
High strength steel is used throughout the weldment. Hardened greaseable bushings are utilized at all pivot points. High quality actuator used inside cross tube with no exposed cylinders. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. Includes a holding force of approximately 3x clamping force, while maintaining constant operating speed.
Standard Sizes
Widths range from 24″ and 30″ pending machine class. Capacities range from 4.50 cu ft. up to 9.40 cu ft. Additional sizes are available for quotation.
Additional Features
Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available.
Features
- Enclosed rotary actuator hinge in cross-tube
- No obstruction in jaw or bucket shell
- No exposed cylinders or other external moving parts
- 120° of jaw movement
- Consistent clamping force through jaw’s full range of motion
- Equal force exerted at both sides prevents jaw twisting
- Standard OEM lugging
- Quick-coupler compatible
- Uses existing auxiliary hydraulic circuit
- Clamping force approximately 3x of standard thumb
SPECIFICATIONS
| PART # | WIDTH | CAPACITY | # OF TEETH | WEIGHT |
| PG06-24-9T | 24″ | 7.50 | 5 | 650 |
| PG06-30-9T | 30″ | 9.40 | 5 | 800 |
MACHINE FITS
MINI 2
| MAKE / WEIGHT CLASS | MINI 2 (7,500 – 11,000 LBS.) |
| BOBCAT | |
| CASE | |
| CAT | |
| DOOSAN | |
| DITCH WITCH | |
| GEHL | |
| HITACHI | |
| HYUNDAI | |
| IHI | |
| JCB | |
| JOHN DEERE | 60G |
| KOBELCO | |
| KOMATSU | |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON |
MINI 3
| MAKE / WEIGHT CLASS | MINI 3 (11,000 – 14,000 LBS.) |
| BOBCAT | E80, E85 |
| CASE | |
| CAT | 306CR |
| DOOSAN | DX80 |
| DITCH WITCH | |
| GEHL | GE753Z, GE803 |
| HITACHI | |
| HYUNDAI | R75 |
| IHI | 55N-2, 55NX, 65NX, 80NX |
| JCB | 8060 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | PC78, PC95, PC88MR-8 |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | 8003, 7503ZT |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | HR32 |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON | ET90, EW100, 8003 |
