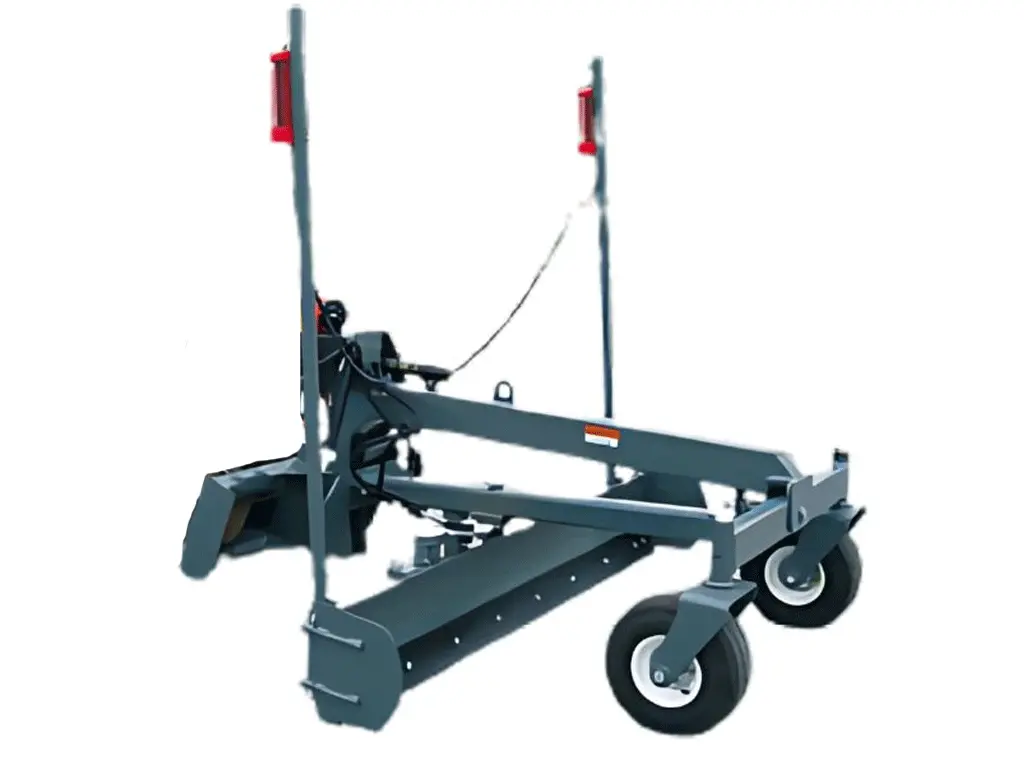

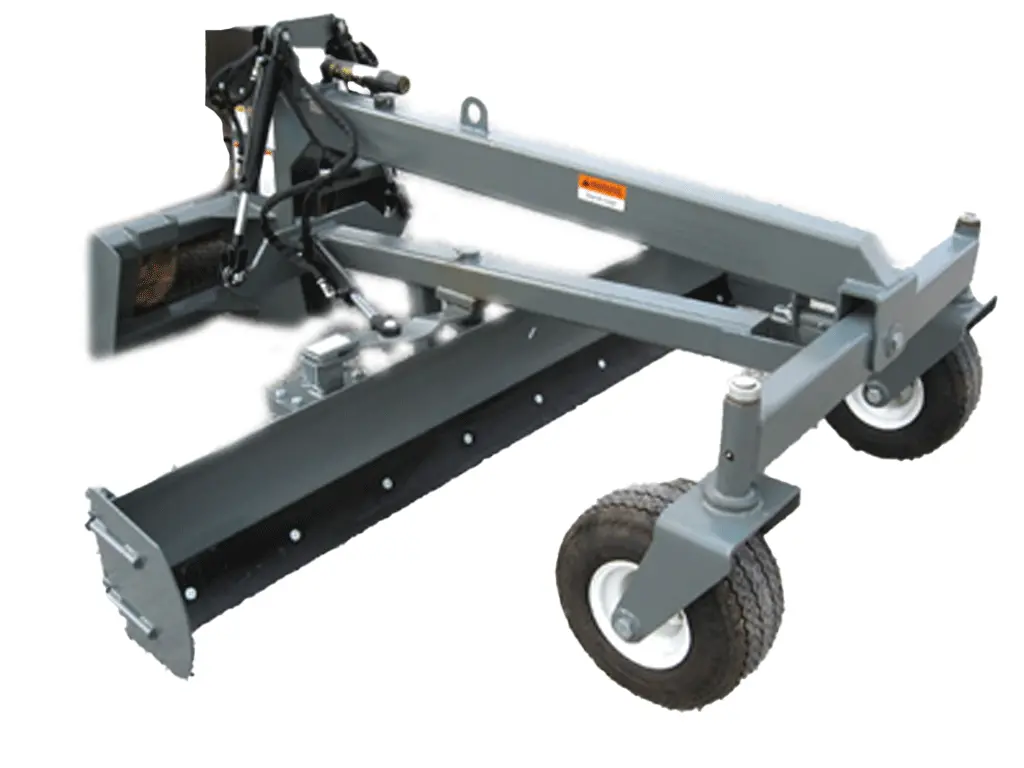

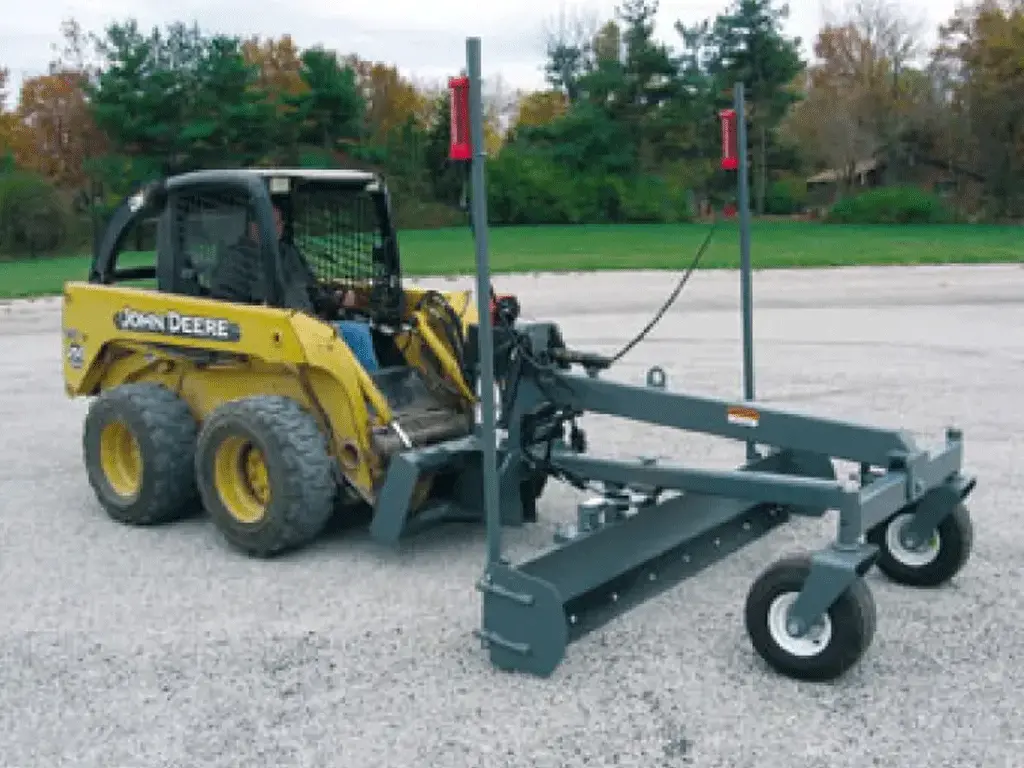

SKID STEER GRADER BLADE
PRECISION GRADING FOR ASPHALT, LANDSCAPING & CONCRETE CONTRACTORS
The patented SSGB-8C Skid Steer Grader Blade delivers exceptional accuracy, control, and durability for asphalt repair, landscaping projects, and concrete flatwork preparation. Featuring an 8-foot, six-way hydraulic moldboard, this grader allows operators to achieve precise grade control using either an in-cab remote or 14-pin skid steer joystick controls.
Built for professional performance, the SSGB-8C includes shear-pin moldboard protection, connect-under-pressure hydraulic couplers, a reversible beveled cutting edge, and a standard proportional valve for smooth blade adjustments. Optional laser-control interfaces and accessory kits allow contractors to achieve superior grade accuracy on demanding job sites.
FEATURES
-
Patented 8′ six-way hydraulically controlled moldboard
-
Operates via in-cab remote or skid steer 14-pin joystick controls
-
Shear-pin protected moldboard prevents costly damage
-
Includes 1/2″ connect-under-pressure flat-faced couplers
-
Reversible beveled cutting edge for extended service life
-
Standard proportional valve for smooth blade control
-
Optional Leica laser interface for tight grade tolerances
AVAILABLE OPTIONS
-

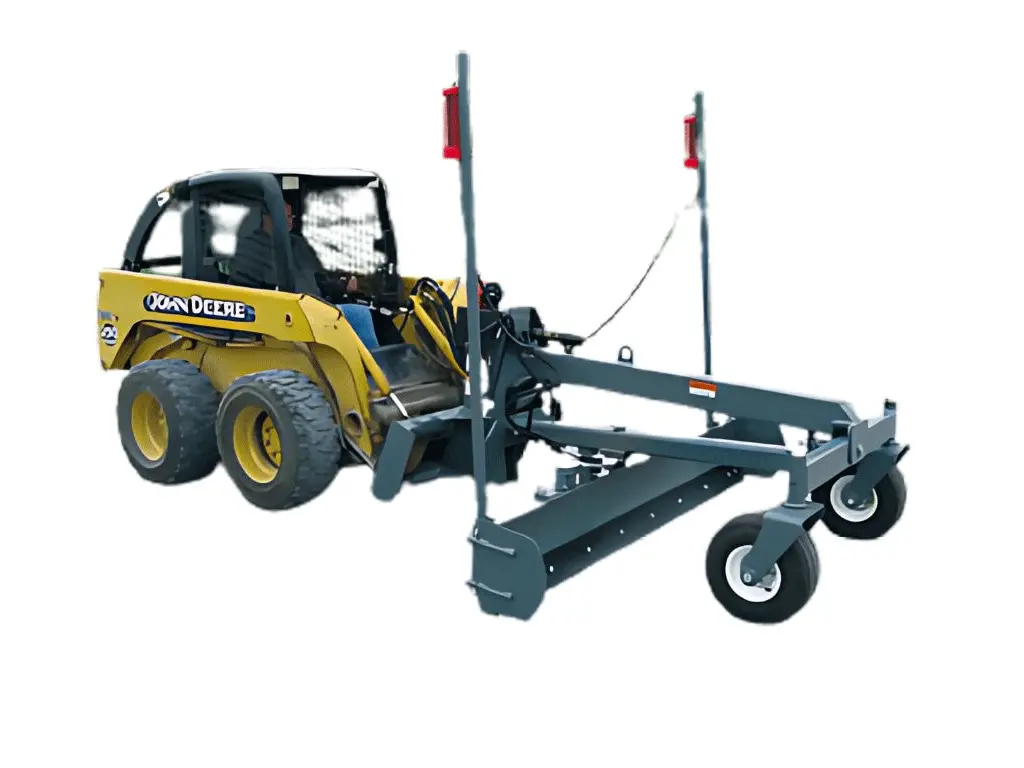

Laser Pole Kit (pair)
-

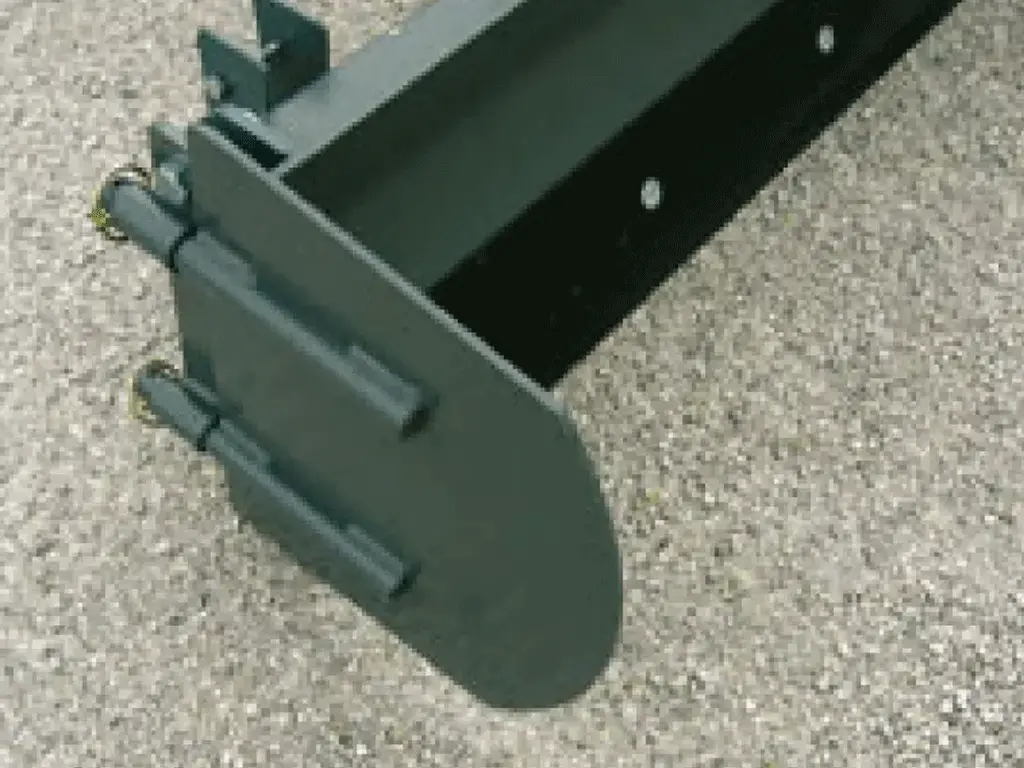

End Plate Kit (pair)
-

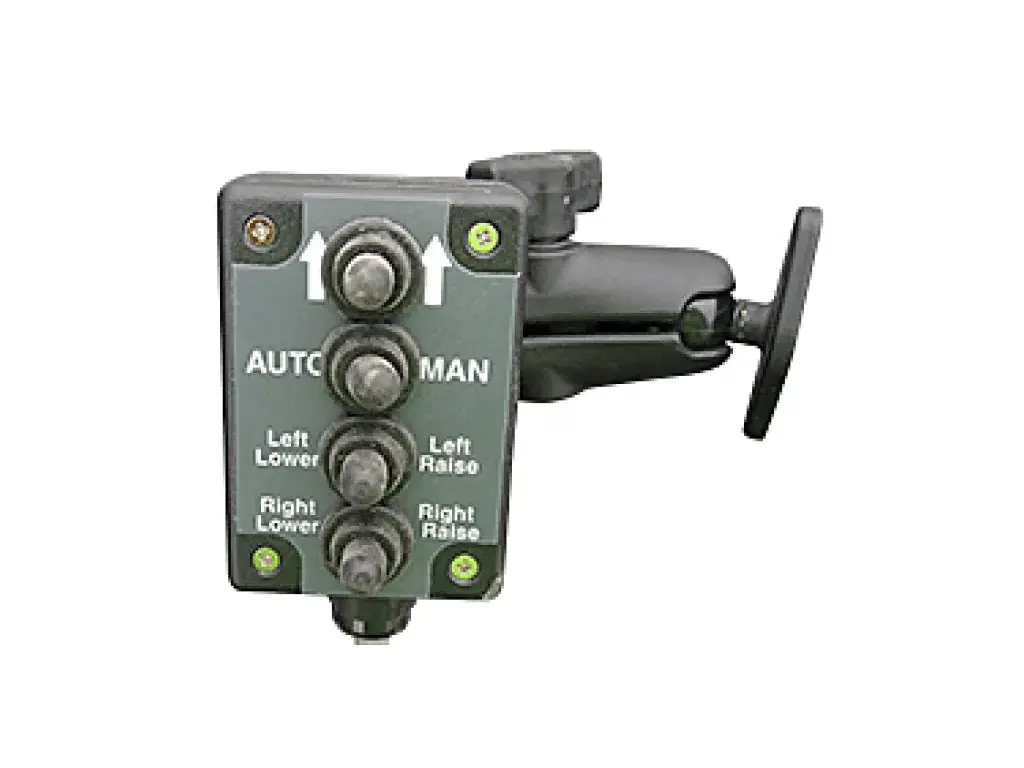

In-cab control box
SPECS
Grader Blades Specifications
| MODEL | SSGB-8C |
| Overall Height (in/cm) | 46-1/2 / 118.1 |
| Overall Length (in/cm) | 98 / 248.9 |
| Overall Width (in/cm) | 95-1/2 / 242.6 |
| Weight (lbs/kg) | 1195 / 542 |
| Mount Type | Universal Skid Steer |
| Hydraulic Blade Adjustments | Tilt / Angle / Height |
| Moldboard Width (in/cm) | 95-1/2 / 242.6 |
| Moldboard Height (in/cm) | 15 / 381 w/Cutting Edge |
| Moldboard Width, Fully Angled (in/cm) | 85 / 215.9 |
| Moldboard Rotation Left & Right | 25 Degrees |
| Moldboard Tilt Up or Down | 25 Degrees |
| Reversible Moldboard Cutting Edge (in/cm) | 1/2 x 6 / 33 x 386 Double Bevel |
| Moldboard Shear Pin Protection (in/cm) | 5/16 / .8166 Diameter Shear Pin (Soft) |
| 3 -Hydraulic Cylinders (in/cm) PSI/bar | 2 / 5 Bore x 12 / 30 Stroke 3500 / 241 |
| Flat-Faced Couplers Included (in/cm) | 1/2 / 13 Body – Connect Under Pressure |
| Grader Control Valve | Electric Solenoid Operated |
| In-Cab Remote Control | Optional |
| 14-Pin Cable Control | Optional |
| Recommended Min. Skid Steer HP | 45 HP (34 kw) |
| Wheel Bearings | Greaseable Tapered Roller |
| Tire Size (in/cm) | 18-1/2 x 8-1/2 x 8 / 47 x 21.6 x 20.3 |
| Product No. | 811890 |
