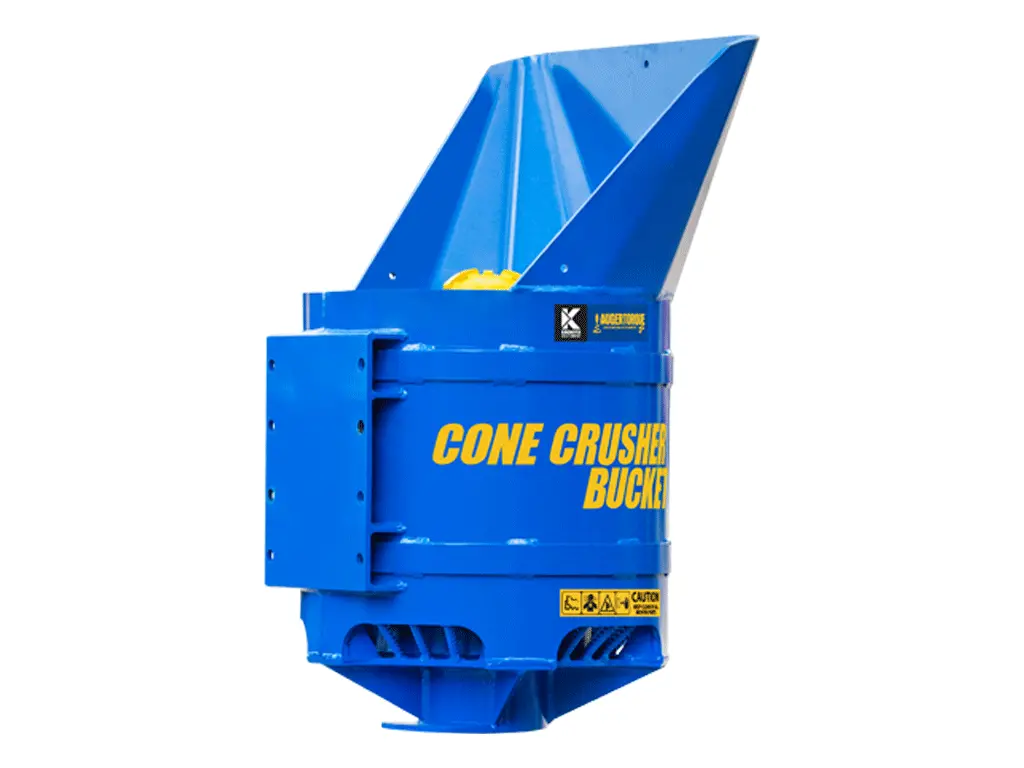

CONE CRUSHER BUCKET – EFFICIENT ON-SITE RUBBLE RECYCLING FOR EXCAVATORS, COMPACT WHEEL LOADER, BACKHOES & SKID STEERS
The Cone Crusher Bucket offers a fast, efficient, and cost-effective way to recycle small-volume construction rubble directly on the jobsite. Designed to process materials like clay bricks, light concrete blocks, breeze blocks, pavers, asphalt, and more, this attachment converts debris into usable 1.5″–3″ aggregate—perfect for foundations, roadways, yard surfacing, landscaping projects, and base layers under poured concrete.
Powered by Auger Torque’s advanced engineering and distributed in the U.S. by Solesbee’s, this crusher bucket delivers outstanding performance in compact workspaces while reducing hauling costs and improving jobsite productivity.
KEY FEATURES
-
Easy-to-use, compact design for excavators, backhoes, and skid steers
-
Bucket scoop for lifting, sorting, and single-operator efficiency
-
Seven-sided cone fractures material progressively for consistent output
-
Hardened steel & tungsten carbide grinding faces for maximum durability
-
Built around a powerful Series 3.5 sub gearbox
-
Epicyclic gearbox multiplies torque for superior crushing efficiency
-
High-quality hydraulic motors ensure long-lasting reliability
APPLICATIONS
-
Foundation preparation
-
Track and yard surfacing
-
Landscaping and grading
-
Roadway construction
-
Base layers beneath concrete
-
Efficient waste-skip filling and material reduction
SPECS
| MODEL | SERIES 1 |
| CARRIER WEIGHT | 3-10 TON |
| TORQUE RANGE | 4661-7458 FT-LB |
| OIL PRESSURE RANGE | 2175-3480 PSI |
| OIL FLOW RANGE | 18-39 GPM |
| SPEED RANGE | 36-100 RPM |
| UNIT LENGTH | 51″ |
| UNIT WIDTH | 35″ |
| UNIT HEIGHT | 25″ |
| DRUM DIAMETER | 23″ |
| UNIT WEIGHT | 838 LBS. |
| OUTPUT | |
| MIXED MATERIAL | UP TO 5 TON PER HOUR |
| BRICK | UP TO 9 TON PER HOUR |
| OUTPUT MATERIAL | UP TO 60mm |
