Compact Hydra Bucket Compatible with Mini Loaders

Description

DESCRIPTION

9/25

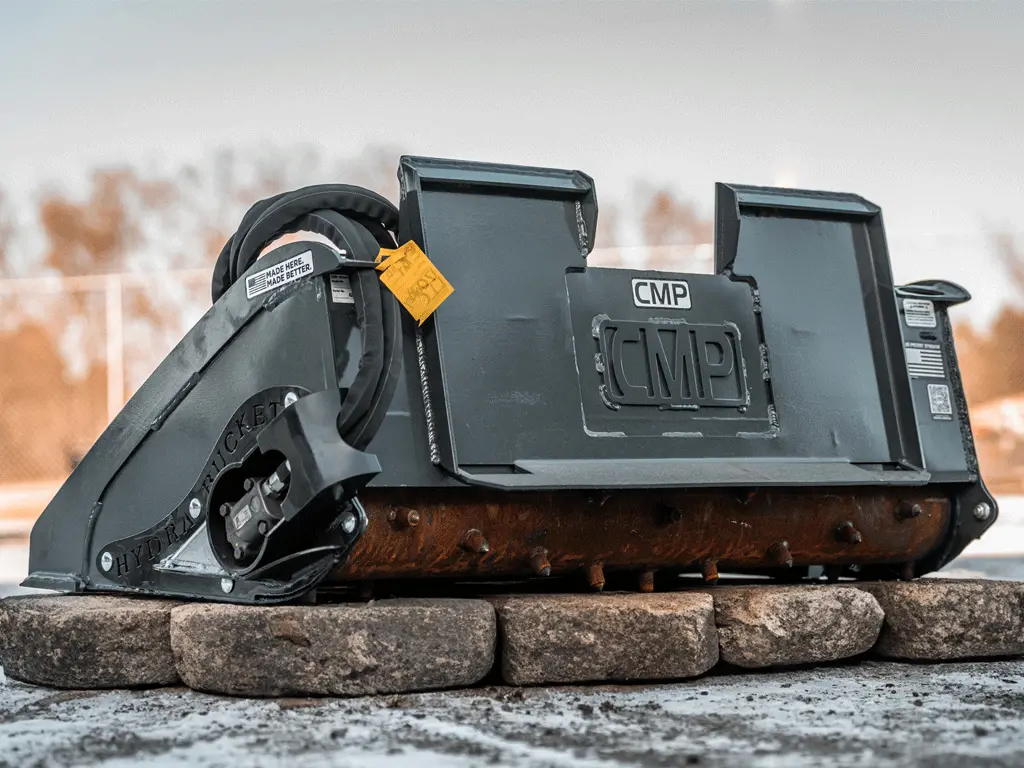

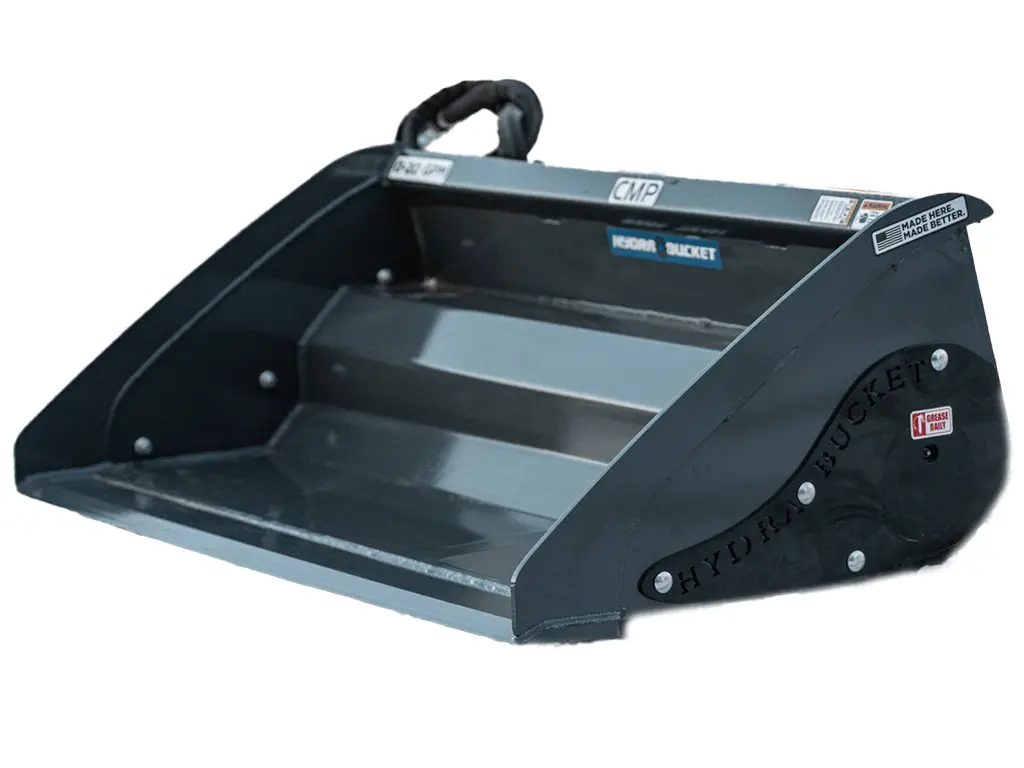

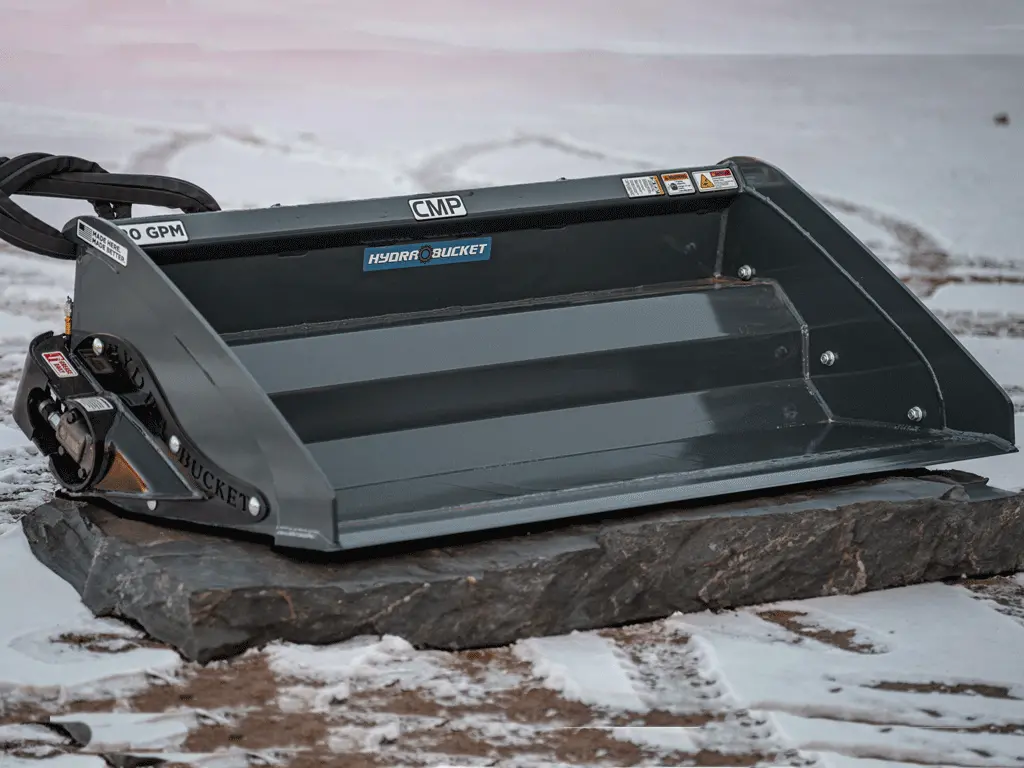

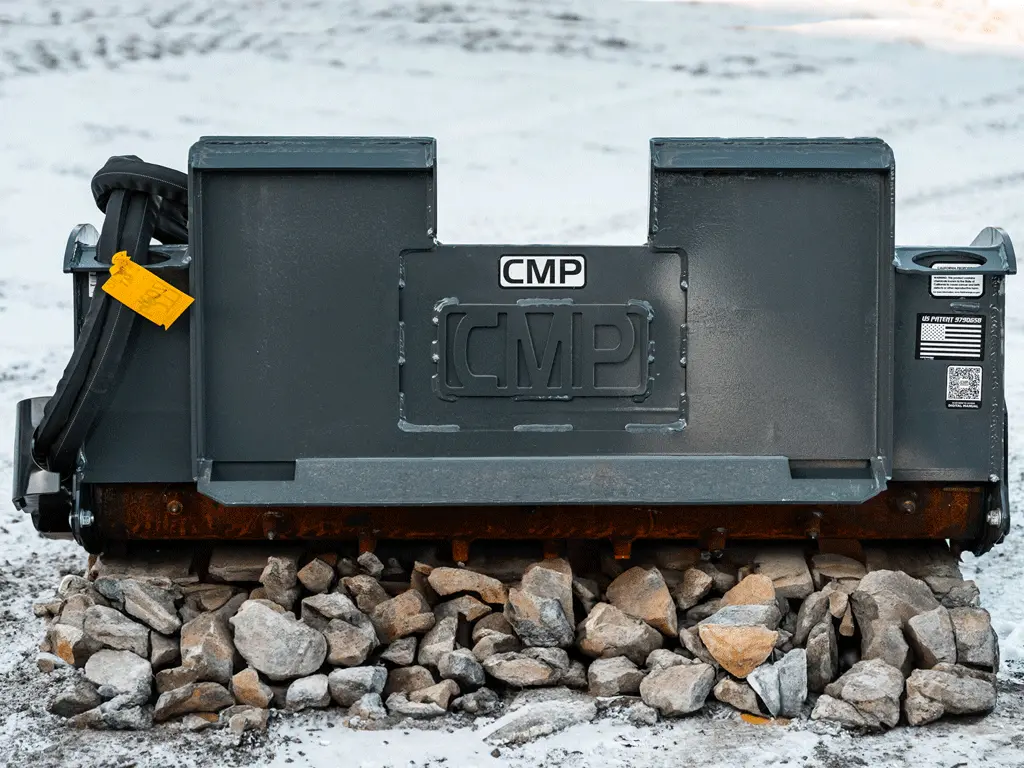

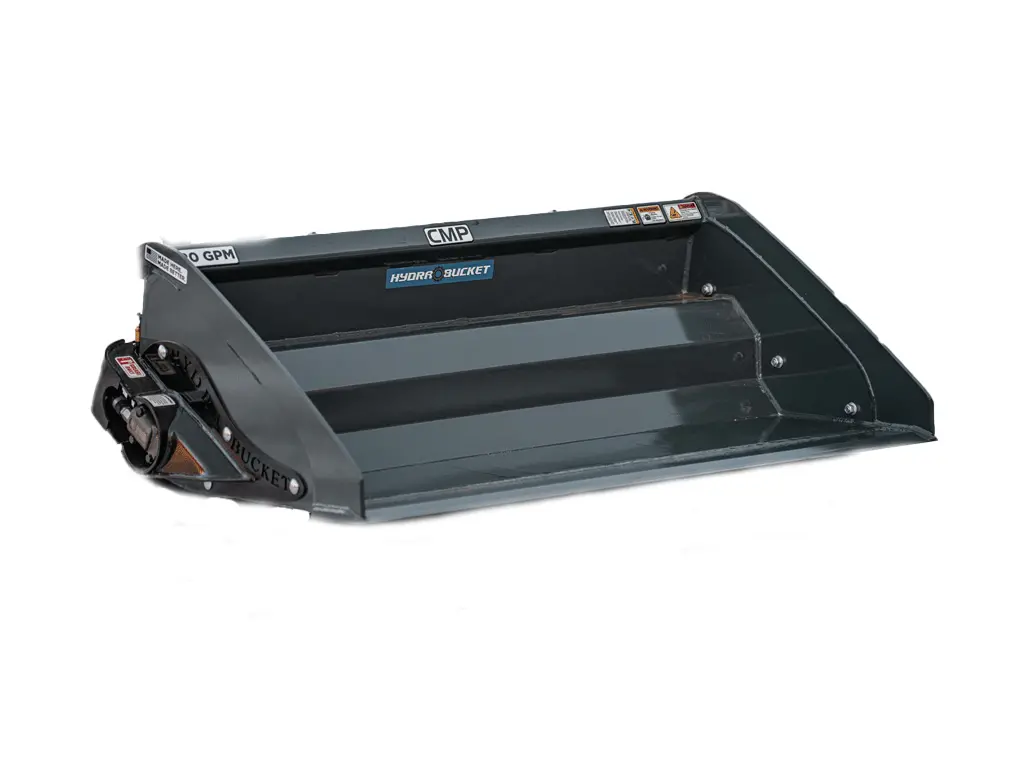

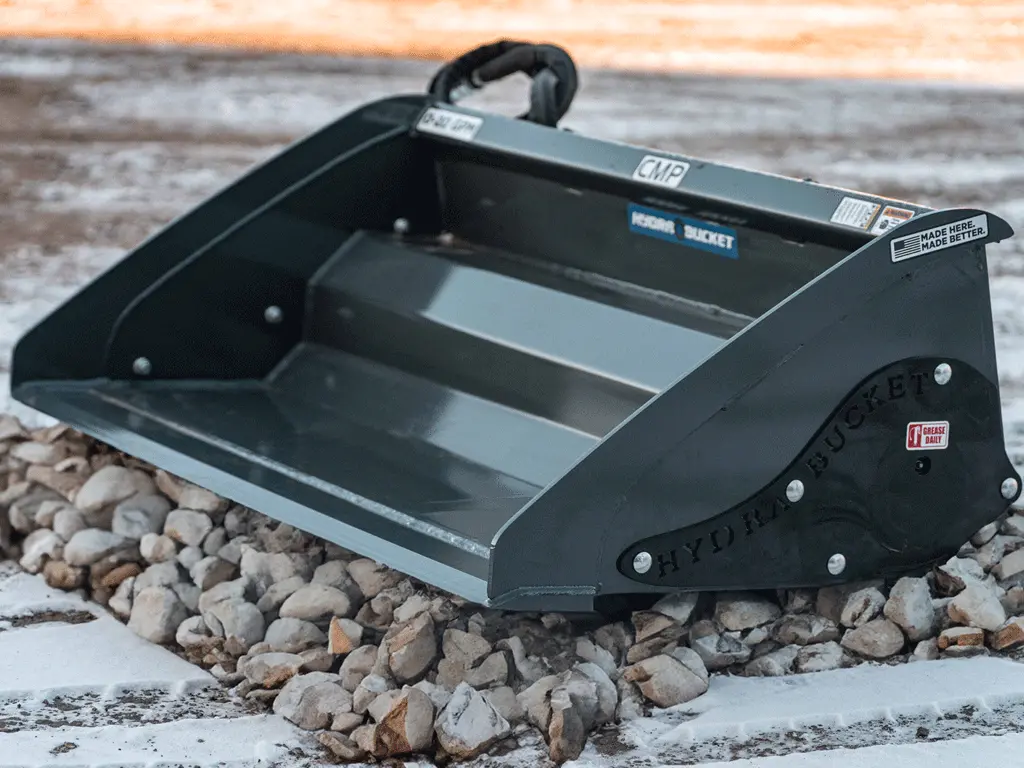

Mini Hydra Bucket

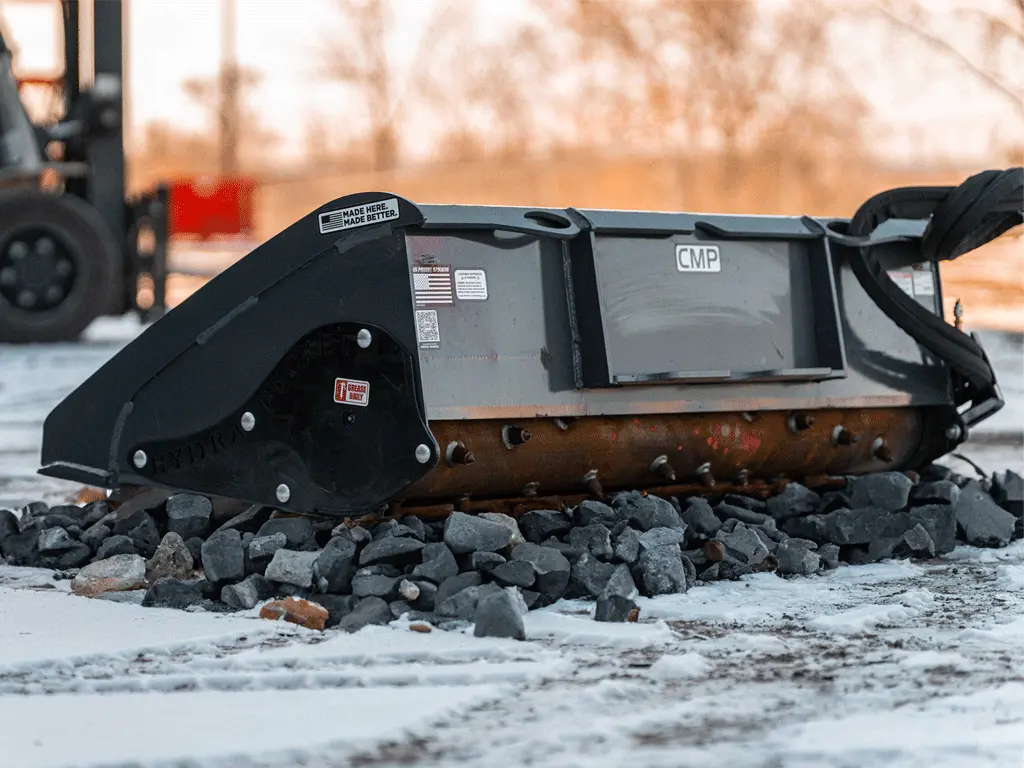

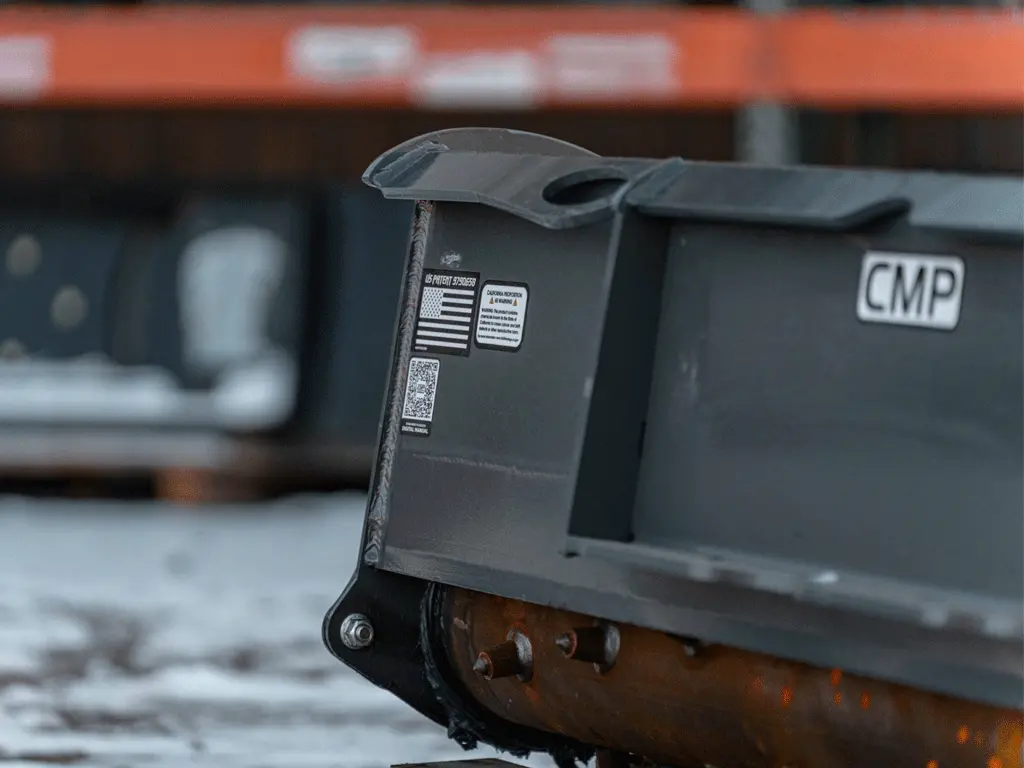

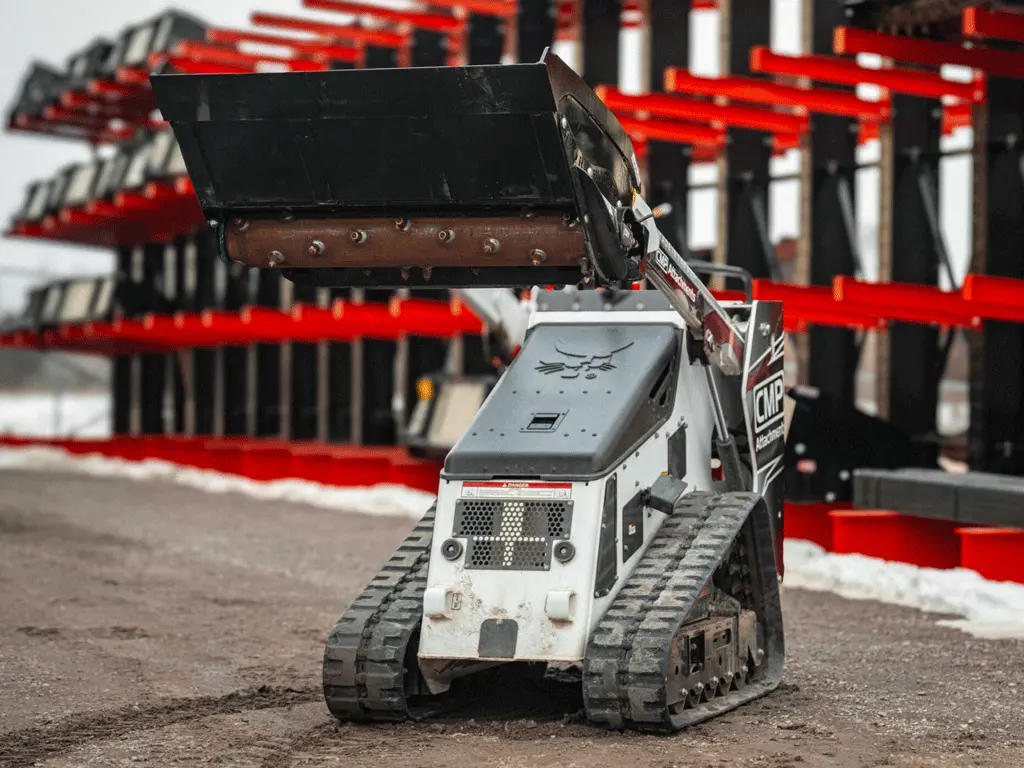

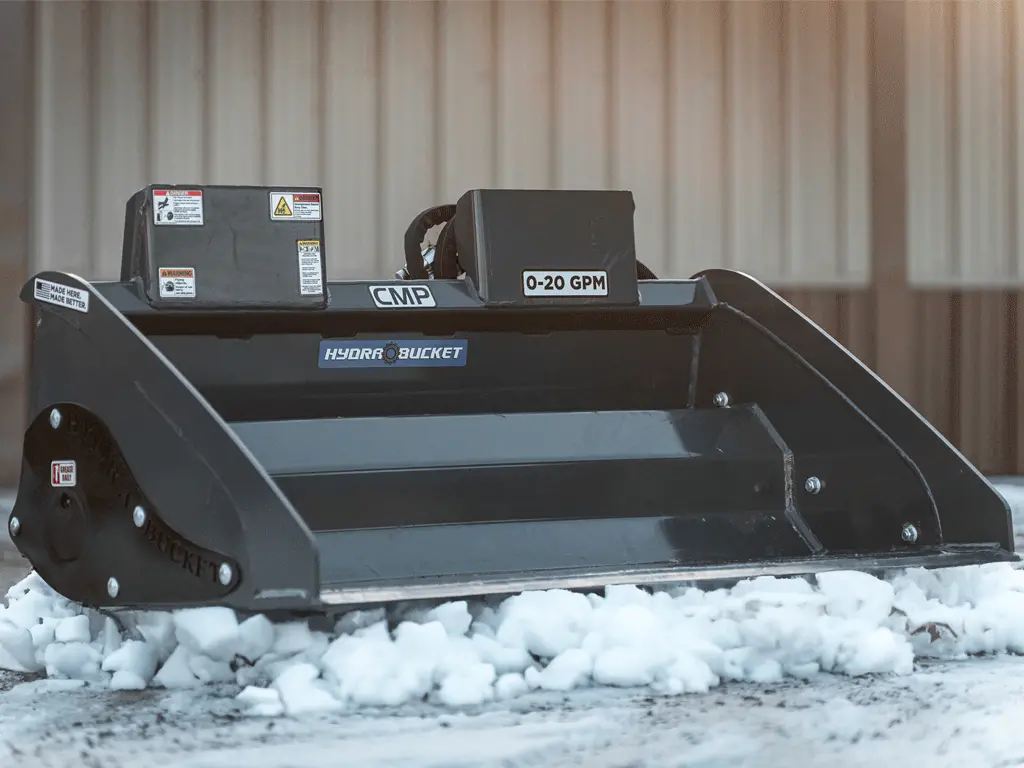

The Mini Hydra Bucket is the most versatile mini skid steer bucket available—truly the Swiss Army knife for your mini loader. Designed and patented for unmatched performance, it functions as an ultra heavy-duty general-purpose bucket while also grinding, shredding, and pulverizing with its carbide-toothed hydraulic spinning rake built into the heel.

Features:

• Triple-sealed oversized ball bearings for maximum protection from the elements

• Internal cutting edge inside the drum cavity pulverizes material as it passes through

• Ultra-hard carbide mining teeth for superior grinding and shredding power

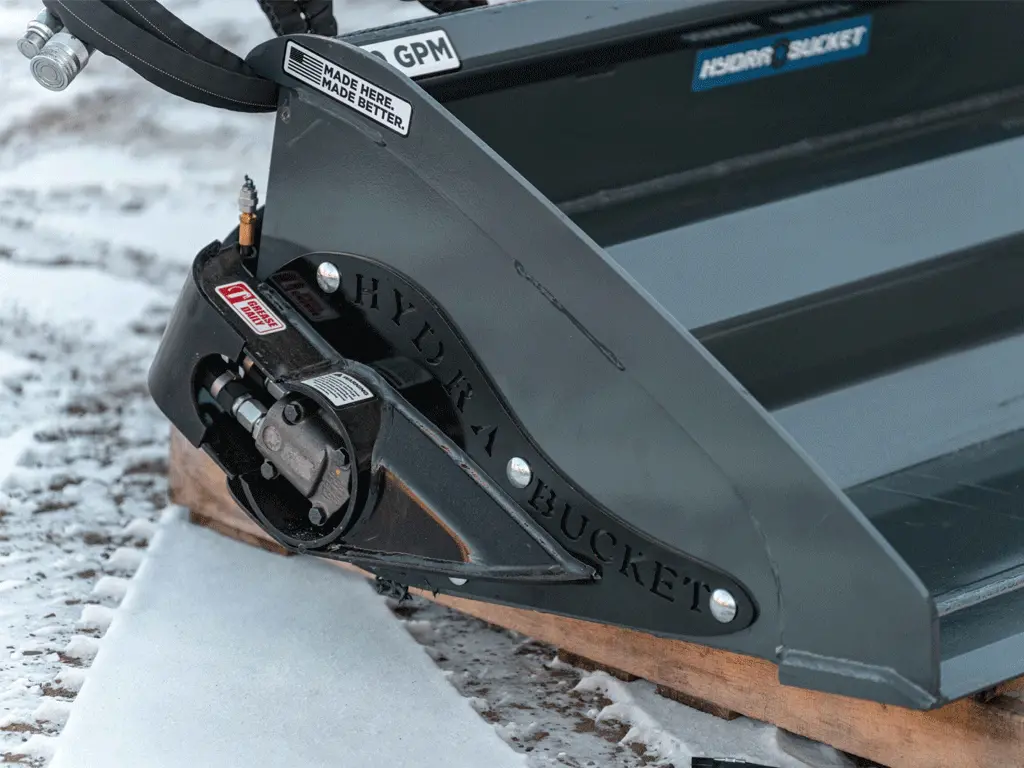

• High-torque, direct-drive hydraulic motor compactly housed inside the drum (only 2.5″ beyond side plate)

• Crossover relief valves to protect the hydraulic system from shock loads

• Bidirectional drum quickly reverses to clear jams or obstructions

• Low-flow compatible—runs on even the smallest mini skid steers (up to 20 GPM max)

• Durable anthracite gray and black powder coat for long-term rust resistance and a professional finish

Engineered for power, precision, and versatility, the Mini Hydra Bucket is an attachment you won’t want to take off your machine.

SPECS

Model	Width	Struck Volume	Heaped volume	Weight
Mhb36	36″	7 1/4 FT³	9 3/4 FT³	420lbs

Model	Width	Struck Volume	Heaped volume	Weight
MHB42	42″	8 FT³	10 1/2 FT³	440lbs

Model	Width	Struck Volume	Heaped volume	Weight
MHB44	44″	9 FT³	11 1/2 FT³	450lbs

Model	Width	Struck Volume	Heaped volume	Weight
MHB48	48″	9 3/4 FT³	12 1/2 FT³	470lbs

Model	Width	Struck Volume	Heaped volume	Weight
MHB54	54″	11 FT³	14 1/2 FT³	490lbs

Model	Width	Struck Volume	Heaped volume	Weight
MHB60	60″	12 FT³	16 1/2 FT³	510lbs

Model	Width	Struck Volume	Heaped volume	Weight
MT36	36″	7 1/4 FT³	9 3/4 FT³	420lbs

Model	Width	Struck Volume	Heaped volume	Weight
MT42	42″	8 FT³	10 1/2 FT³	440lbs

Model	Width	Struck Volume	Heaped volume	Weight
MT44	44″	9 FT³	11 1/2 FT³	450lbs

Model	Width	Struck Volume	Heaped volume	Weight
MT48	48″	9 3/4 FT³	12 1/2 FT³	470lbs

Model	Width	Struck Volume	Heaped volume	Weight
MT54	54″	11 FT³	14 1/2 FT³	490lbs

Model	Width	Struck Volume	Heaped volume	Weight
MT60	60″	12 FT³	16 1/2 FT³	510lbs
