DESCRIPTION

5/24

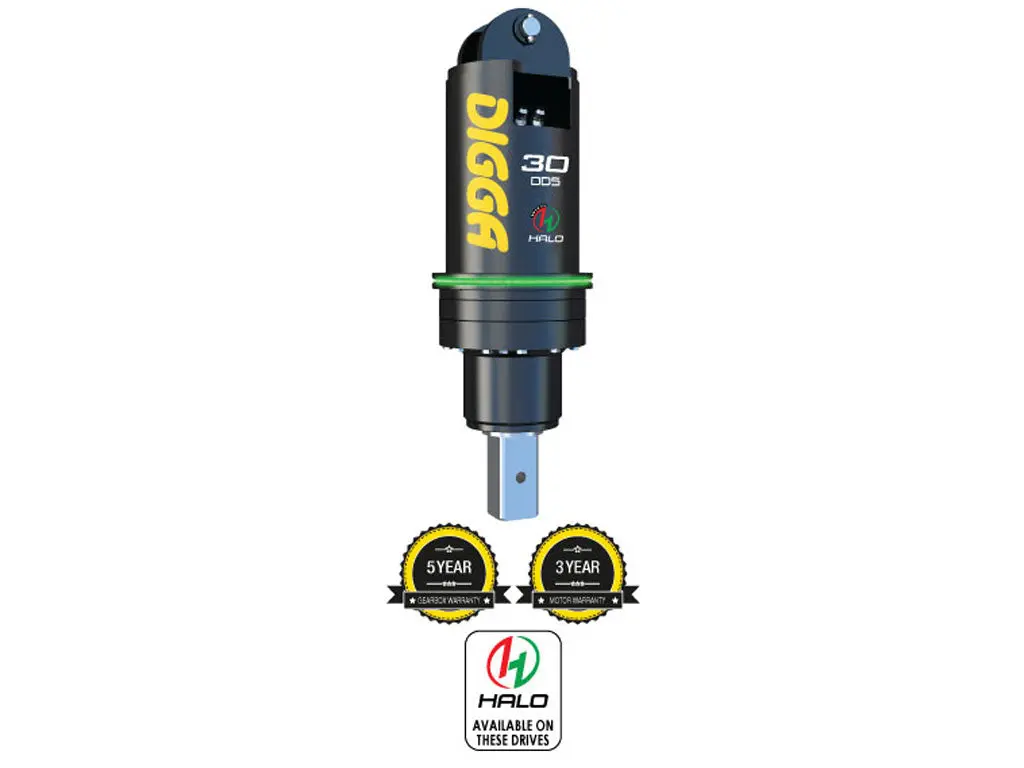

AUGERS FOR EXCAVATORS 18-30T

Digga’s range of drilling augers for 18-30t excavators are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.
Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.
Digga’s new Halo Alignment System is the future of drilling. Located on the hood of the ring on the Drilling Drive, the Halo Alignment system eliminates the need for any spotter & ensures all holes drilled are plumb.
Available in Single Speed Std, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV “Energy Control Valve” ensures complete protection against pile ‘flickback’ damaging your motor.

FEATURES

• Compact high torque Digga manufactured gearbox
• Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
• 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
• Lifetime shaft pull out warranty
• Halo Alignment System available
• 5 year gearbox and 3 year motor warranty
• Over 30 years design and manufacturing experience
• Easily converted to a screw anchor drive with the addition of our patented ‘anti kickback valve’

HOSES AND DISCONNECTS SOLD SEPARATELY – CALL FOR PRICE

SPECS

SPECS	20DDS	25DDS	30DDS
MAX TORQUE (FT-LBS @ 3500 PSI)	19,488	24,514	30,771
RECOMMENDED FLOW (GPM)	26-60	26-60	26-60
MOTOR TYPE	EATON	EATON	EATON
MAX PRESSURE ( DO NOT EXCEED)	3500 PSI @ 33 GPM
MAX FLOW ( DO NOT EXCEED)	61 GPM @ 1800 PSI
MAX HORSE POWER	67	67	67
PRESSURE RELIEF VALVE	INCLUDED	INCLUDED	INCLUDED
STANDARD OUTPUT SHAFT	100 MM SQUARE	100 MM SQUARE	100 MM SQUARE
HALO	OPTIONAL	OPTIONAL	OPTIONAL
RECOMMENDED AUGER	RC10 / RC11	RC10 / RC11	RC10 / RC11
MAX AUGER DIAMETER (CLAY / SHALE)*	60″	60″	60″
MAX AUGER DIAMETER (EARTH)*	72″	72″	78″
WEIGHT (LBS)	640	640	640
OVERALL LENGTH (IN)	45.3″	45.3″	45.3″
DIAMETER (IN)	14″	14″	14″

(*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.

20DDS
SPEED	SPEED	TORQUE	TORQUE
GPM	RPM	PSI	FT-LBS
25	14	1500	8352
30	17	1700	9466
34	19	1900	10579
38	21	2100	11693
42	23	2300	12807
46	25	2500	13920
50	28	2700	15034
54	30	2900	16147
58	32	3100	17261
60	33	3300	18375
		3500	19488

25DDS
SPEED	SPEED	TORQUE	TORQUE
GPM	RPM	PSI	FT-LBS
26	11	1500	10506
30	13	1700	11907
34	15	1900	13308
38	17	2100	14709
42	18	2300	16109
46	20	2500	17510
50	22	2700	18911
54	24	2900	20312
58	25	3100	21713
60	26	3300	23113
		3500	24514

30DDS
SPEED	SPEED	TORQUE	TORQUE
GPM	RPM	PSI	FT-LBS
26	9	1500	13188
30	10	1700	14946
34	12	1900	16704
38	13	2100	18463
42	15	2300	20221
46	16	2500	21979
50	17	2700	23738
54	19	2900	25496
58	20	3100	27254
60	21	3300	29013
		3500	30771
