Snowwolf Quattroplow XT Automatic Wing Plow for Wheel Loaders – 10K–15K Lbs Capacity

Description

DESCRIPTION

10/25

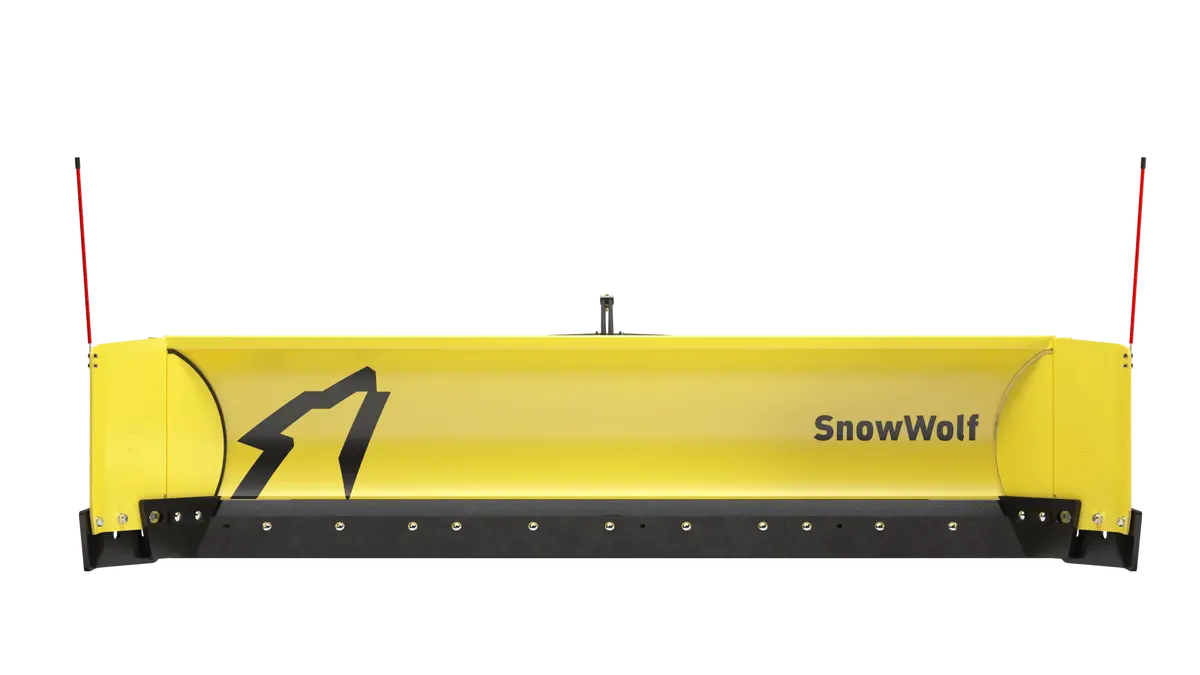

QuattroPlowXT™ by SnowWolf – The 4-in-1 Mid-Weight Snow Plow for Skid Steers & Compact Wheel Loaders

Clear more snow with less effort using the QuattroPlowXT™, the mid-weight powerhouse in SnowWolf’s revolutionary autowing plow lineup. Built for machines with an operating weight of 10,000 to 15,000 lbs, this heavy-duty attachment delivers the versatility of four plows in one—angle plow, wide-angle plow, snow pusher, and backdrag—all with no electrical controls or detachable box to manage.

Engineered for compact wheel loaders and large skid steers, the QuattroPlowXT™ maximizes productivity with 165° wing rotation, bonus wide-angle coverage, and a tight 35° moldboard angle to roll snow efficiently and reduce windrows. Easily switch functions on the fly with two hydraulic hose connections—no wiring, no hassle, just plug and plow.

---

Why Choose the QuattroPlowXT™?

• ✅ 4-in-1 Functionality: Push, angle, backdrag, and wide-angle with one tool

• ✅ Built for Bigger Machines: Designed for 10,000–15,000 lb equipment

• ✅ Zero Electrical Controls: Just two hoses—no complicated setup

• ✅ Max Snow Control: 165° rotating wings and 23″ of bonus coverage per side

• ✅ Efficient Snow Rolling: 35° angle reduces horsepower demand

---

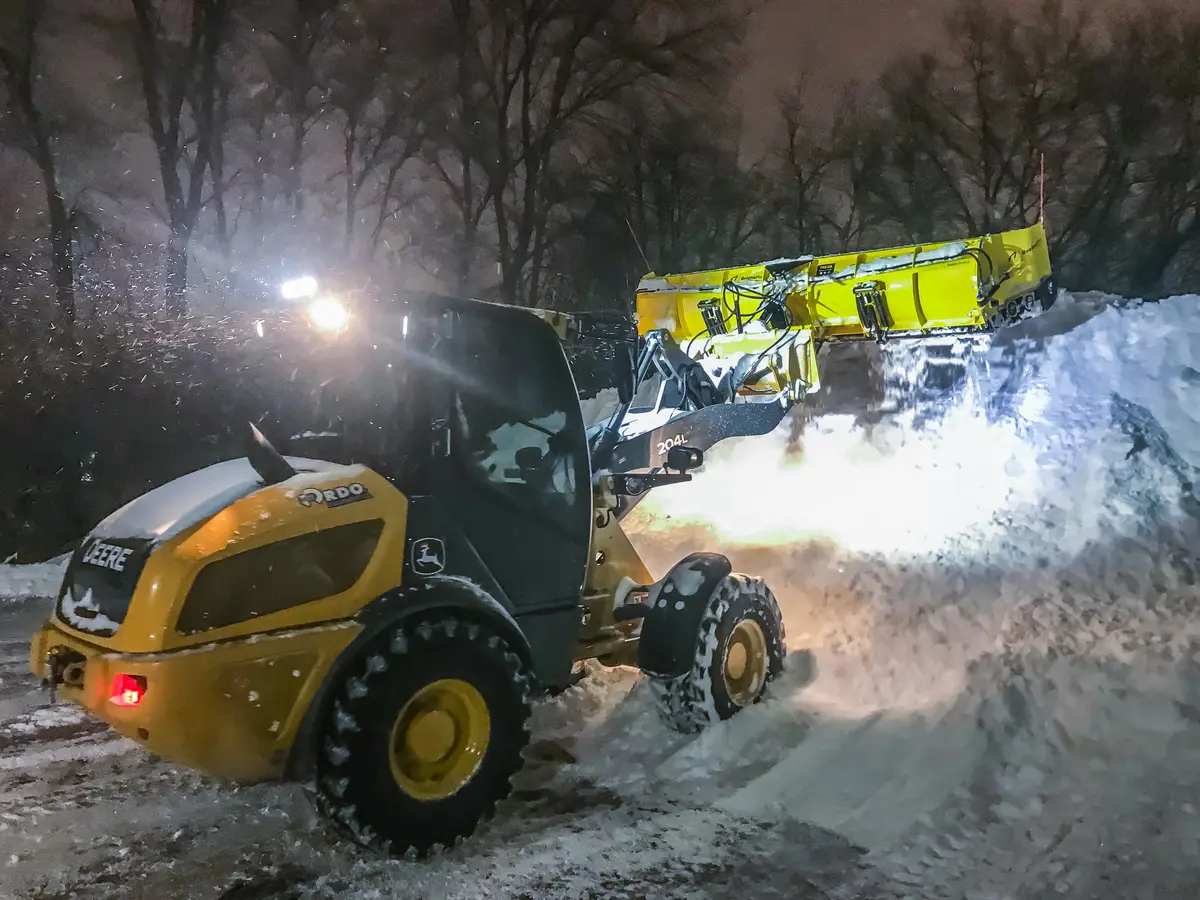

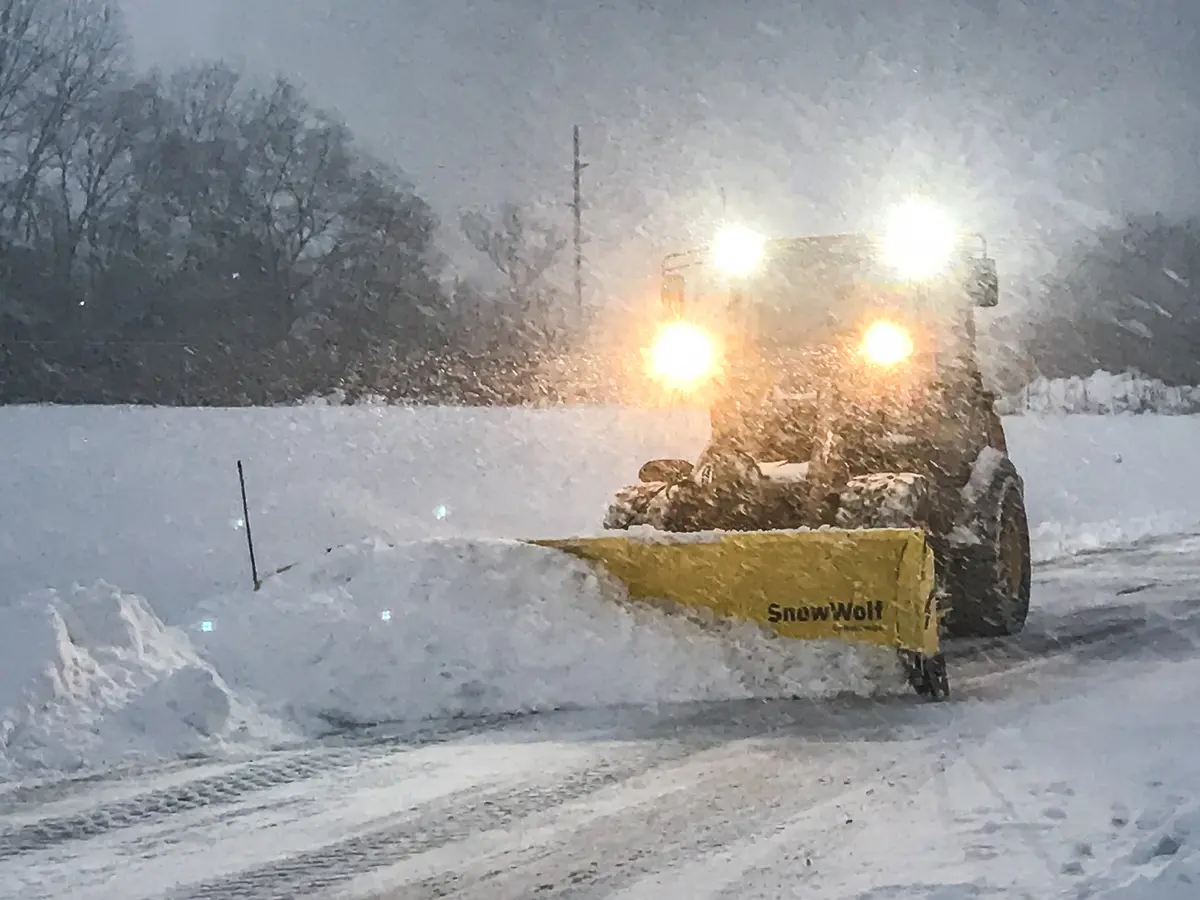

Operators across North America report significant time savings, reduced machine hours, and increased plowing efficiency after switching to the QuattroPlowXT™. From commercial lots to large residential properties, it’s the new standard for high-performance snow removal.

ACCESSORIES

ActivEdge

PowerWing Upgrade

SPECIFICATIONS

Model Number	QPXT-126	QPXT-138	QPXT-150
Blade Width (A)	9.0′	10.0′	11.0′
Width In Pusher Position (B)	126” (10′-6″)	138” (11′-6″)	150″ (12′-6″)
Maximum Width (C)	154″ (12′-10″)	166″ (13′-10″)	178” (14′-10″)
Width In Backdrag Position (D)	126” (10′-6″)	138” (11′-6″)	150″ (12′-6″)
Clearing Width at Wide Angle (E)	126″ (10′-6″)	136″ (11′-4″)	146″ (12′-2″)
Width In Angled Backdrag Position (F)	113” (9′-5″)	123” (10′-3″)	146″ (12′-2″)
Blade Height	30.7”	30.7”	30.7”
Unit Weight (lbs.)	1,464	1,540	1,575
Moldboard Gauge	10 Ga.	10 Ga.	10 Ga.
Trip Springs	4 Ext.	4 Ext.	4 Ext.
Moldboard Cutting Edge	5/8” x 6” Top Punch, High Carbon Standard (Carbide Insert Optional)
Angle Rams	2″ x 13″ Nitro Steel UltraMAX
Vertical Ribs	6	6	6
Moldboard Radius	14”	14”	14”
Full Down Pressure	Yes	Yes	Yes
Universal Skid Steer Compatible	Standard
Crossover Relief Valve	Standard
Wing Thickness	3/8” Grade 50
Wing Wear Shoes (optional)	1” High Density Urethane
Wing Wear Shoes (standard)	AR400 Floating Steel
Wing Hinge Pin	1 3/8” x 21-1/2”
Wing Cylinder	1-1/2″ x 6″ Nitro steel double acting
PowerWing Upgrade	Optional
