DESCRIPTION

7/25

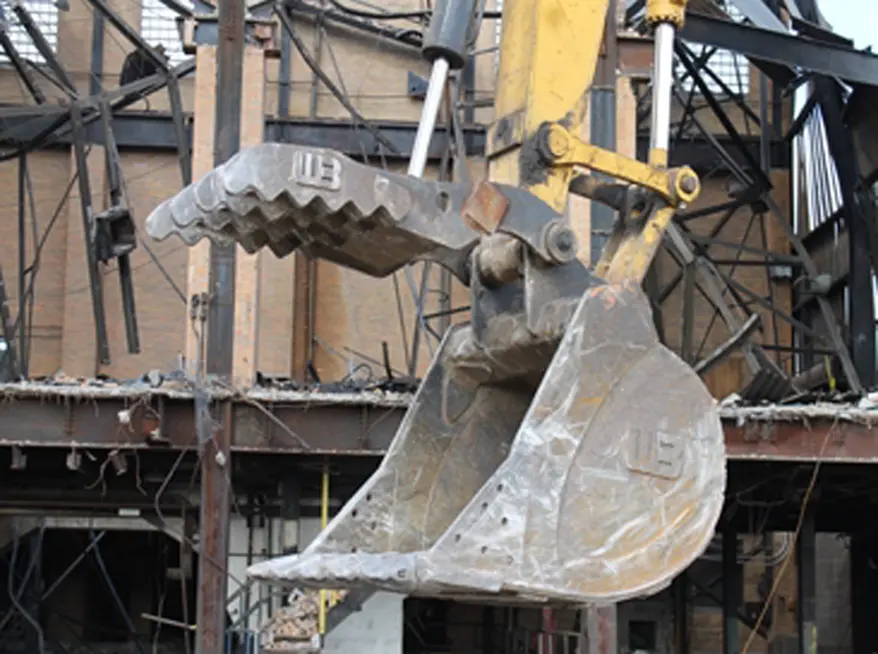

MAIN PIN HYDRAULIC THUMBS

EXCAVATOR

Recommended Applications

Werk-Brau’s Multi-Tined Thumb for Excavators is specifically engineered to aid in handling or loading irregular shaped objects, debris, logs, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. This thumb is not recommended for prying. Each thumb has a standard 120 degree rotation.

Quality Construction

Each thumb is custom designed to match the tip radius of the bucket it is being paired with. High strength steel is used throughout entire weldment. This thumb features hardened pins, and greaseable bushings at all pivot points.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Features

• 120 degree standard rotation
• Does not include jumper hose kit
• Information form must be completed when thumb is working with any non Werk-Brau attachment

SPECS

PART #	NUMBER OF TINES	WEIGHT
EZG-EX12-2	2	620
EZG-EX12-3	3	670
EZG-EX12-4	4	740

FITS

MAKE / WEIGHT CLASS	12MT (24,000 – 33,000 LBS.)
CASE	CX130, CX145D, CX140E
CAT	311, 313, 314F, 315F (A-Linkage)
DOOSAN	DX140LC-5, DX140LCR-5, DX140W-5
HITACHI	ZX130
HYUNDAI	HX140, HX145, HX220 LR
JOHN DEERE	130G, 135G, 130P
KOBELCO	SK140, ED160
KOMATSU	PC138
LIEBHERR
LINK BELT	130X4, 145X4, 210X4 LR
SANY	SY135, SY235 LR, SY265 LR
TAKEUCHI	TB1140, TB2150
VOLVO	EW140, EC140, ECR145
