Kato 55N4 Compact Excavator

Description

DESCRIPTION

12/25

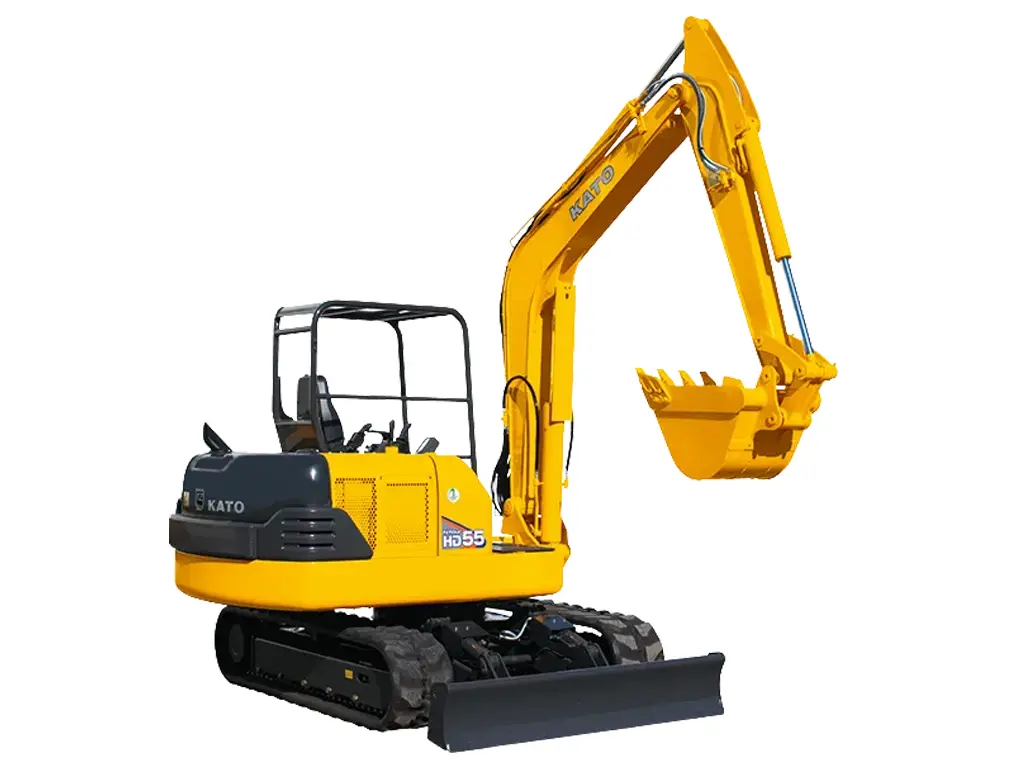

KATO 55N4 MINI EXCAVATOR

UNRIVALED POWER, STABILITY & PRODUCTIVITY

The KATO 55N4 Mini Excavator delivers exceptional digging performance, rock-solid stability, and legendary durability in a compact machine built for demanding jobsites. Designed to outperform others in its class, the 55N4 is often more productive than a loader-backhoe in limited access areas, making it ideal for construction, utilities, landscaping, and year-round operation.

Powered by a 54.7 HP Yanmar Tier 4 Final diesel engine, this mini excavator provides strong breakout force, smooth hydraulic response, and efficient fuel usage. Hydraulic pilot joystick controls with armrests deliver precise, fatigue-reducing operation, while auxiliary hydraulics and variable displacement piston pumps ensure excellent attachment performance.

Operators stay comfortable in all seasons with a standard heated, ROPS-certified cab, or a 4-post canopy option for open-air operation. With rubber or steel track options, a standard backfill blade, and fast travel speeds, the 55N4 is built to work harder, longer, and more efficiently.

---

KEY FEATURES & BENEFITS

• Operating weight up to 12,733 lbs

• Maximum digging depth of 12’8″

• Bucket breakout force: 11,071 lbs

• 54.7 HP Yanmar Tier 4 Final diesel engine

• Variable displacement piston pumps for smooth power delivery

• 2-speed travel for increased productivity

• Auxiliary hydraulics standard

• Hydraulic pilot joystick controls with armrests

• A-F quick change valve standard

• Rubber or steel track options

• Standard backfill blade

• ROPS-certified heated cab (canopy optional)

---

PERFORMANCE SPECIFICATIONS

• Bucket capacity: 4.6 cu ft

• Bucket width: 24″

• Swing speed: 9.0 rpm

• Travel speed (low/high): 1.6 / 2.8 mph

• Gradeability: 30°

• Ground pressure: 4.5 psi

---

HYDRAULIC & BOOM SYSTEM

• Hydraulic pressure: 2,987 psi

• Pump system: 2 piston / 2 gear pumps

• Total hydraulic flow: 17.1 gpm x 2 + 12.2 gpm

• 1st auxiliary line flow: 29.7 gpm

• Boom offset with hydraulic cylinder

• Boom swing angle: 50° left / 90° right

---

DOZER BLADE

• Blade width: 14.5″

• Lift above ground: 15″

• Drop below ground: 15″

---

The KATO 55N4 Mini Excavator combines power, precision, and durability in a compact footprint—making it the perfect solution for contractors who demand high performance in tight working environments.

SPECS

Specifications

Bucket Capacity	4.6 cu. ft
Bucket Width	24″
Operating Weight	12,447 lbs (12,733 lbs)
Transportation Weight	11,795 lbs. (11,955 lbs.)
Swing Speed	9.0 rpm
Travel Speed (low/high)	1.6/2.8 mph
Gradeability	300
Ground Pressure	4.5 psi
Max Bucket Digging Force	11,071 lbs.

Engine

Model	YANMAR 4TNV98 C Tier 4 Final
Rated output	54.7 hp/2400 rpm
Fuel Tank Capacity	19.8 gallons

Boom Swing System

Type	Boom Offset with Hydraulic Cylinder
Swing Angle (L / R)	50° / 90°

Hydraulic System

Pressure	2,987 psi
Pump* Type/ Hydraulic Flow	2 Piston/2 Gear • 17.1 gpm x 2 + 12.2 gpm
1st line	29.7 gpm

Dozer Blade

Size	14.5”
Lift Above ground / Drop Below Ground	15” / 15”
