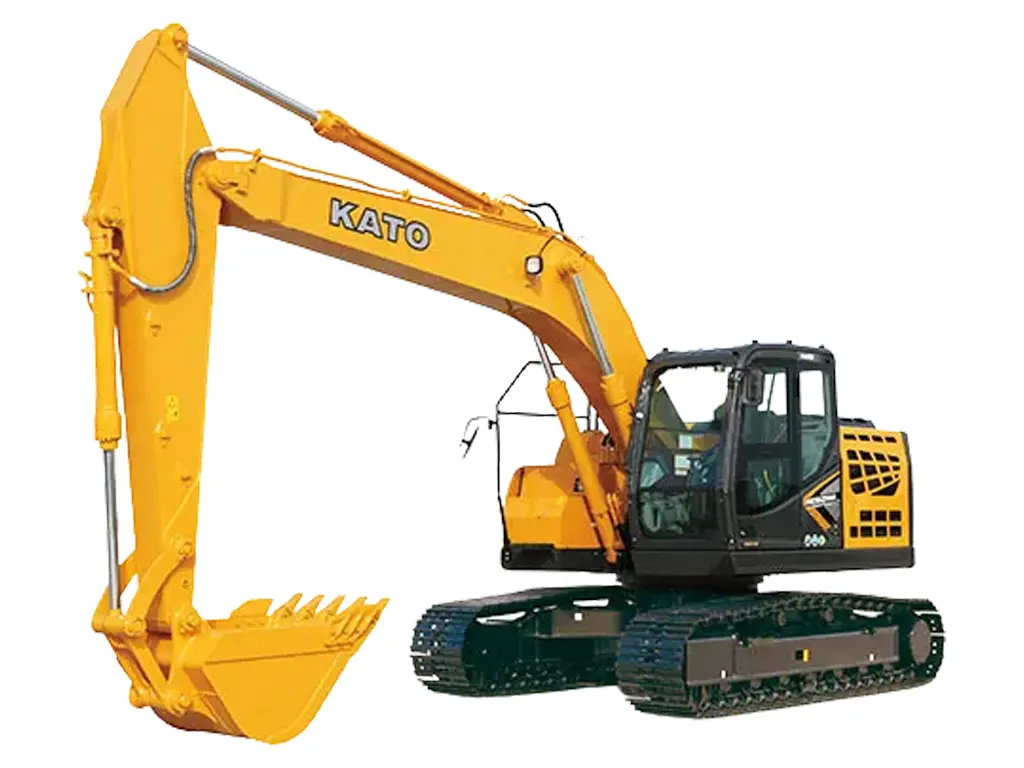

KATO HD823MR-7 EXCAVATOR
POWERFUL, HIGH-PERFORMANCE HYDRAULIC EXCAVATOR WITH OPERATOR-FOCUSED DESIGN
The KATO HD823MR-7 Excavator delivers exceptional digging power, fast hydraulic response, and advanced operator comfort in a rugged large-frame machine. Designed for demanding construction, utility, and excavation applications, the HD823MR-7 combines high breakout force, smooth multi-function operation, and industry-leading reliability.
Powered by an Isuzu 4HK1X Tier 4 Final engine, this excavator produces 172 HP with excellent fuel efficiency and low emissions. The quick-response four-pump hydraulic system and dual auxiliary hydraulics ensure powerful, precise control for heavy digging and attachment use.
OPERATOR COMFORT & CONTROL
-
Spacious, pressurized cab for reduced noise and dust
-
Large 7″ LCD touchscreen monitor for clear machine data
-
Centralized switch layout for intuitive operation
-
Retractable windshield for ventilation and visibility
-
Ergonomic controls with smooth, responsive handling
POWER & PERFORMANCE
-
172 HP Isuzu Tier 4 Final engine
-
Four-pump hydraulic system for fast cycle times
-
Arm digging force: 24,504 lbs
-
Bucket digging force: 33,721 lbs
-
Max drawbar pull: 41,365 lbs
-
Travel speed: 3.7 / 2.4 mph
-
Gradeability: 35°
SAFETY & RELIABILITY
-
Safety lock lever
-
Battery disconnect
-
Error-prevention monitoring system
-
Enclosed, grease-bathed boom swing system
EASY MAINTENANCE
-
Large service covers for quick access
-
Centralized service points
-
Large-capacity toolbox
-
Easy-access fuel refilling
KEY SPECIFICATIONS
-
Operating weight: 54,050 lbs
-
Fuel tank: 86 gal
-
Hydraulic oil tank: 39.6 gal
-
DEF capacity: 14.5 gal
-
Ground pressure: 7.4 psi
The KATO HD823MR-7 is built for contractors who demand power, precision, and long-term durability in a high-performance hydraulic excavator.
SPECS
| Max swing speed | 14.0/min |
| Travel speed high/low | 3.7/2.4 mph |
| Gradeability | 35º |
| Max drawbar pull | 41,365 lbs |
| Arm digging force | 24,504 lbs |
| Bucket digging force | 33,721 lbs |
| Fuel tank | 86 gal. |
| Cooling system | 10.6 gal. |
| Engine oil | 6.8 gal. |
| DEF tank capacity | 14.5 gal |
| Track drive | 2 x 1.32 gal |
| Hydraulic oil tank | 39.6 gal |
| Operating weight | 54,050 lbs |
| Ground Pressure | 7.4 psi |
Engine
| Model | Isuzu 4HK1X Tier 4 Final |
| Rated output | 172HP@2000rpm |
| Starter/Alternator | 24 Volt |
| Max torque | 494 lbf-ft/1600 rpm |
Boom Swing System
| Max swing speed | 14.0/min |
| Lubrication | Completely housed and grease bathed |
Hydraulic System
| System Flow | 58 + 65.5 g/min |
| Max system psi | 4975 psi |
| Max digging psi | 5265 psi |
DIMENSIONS
