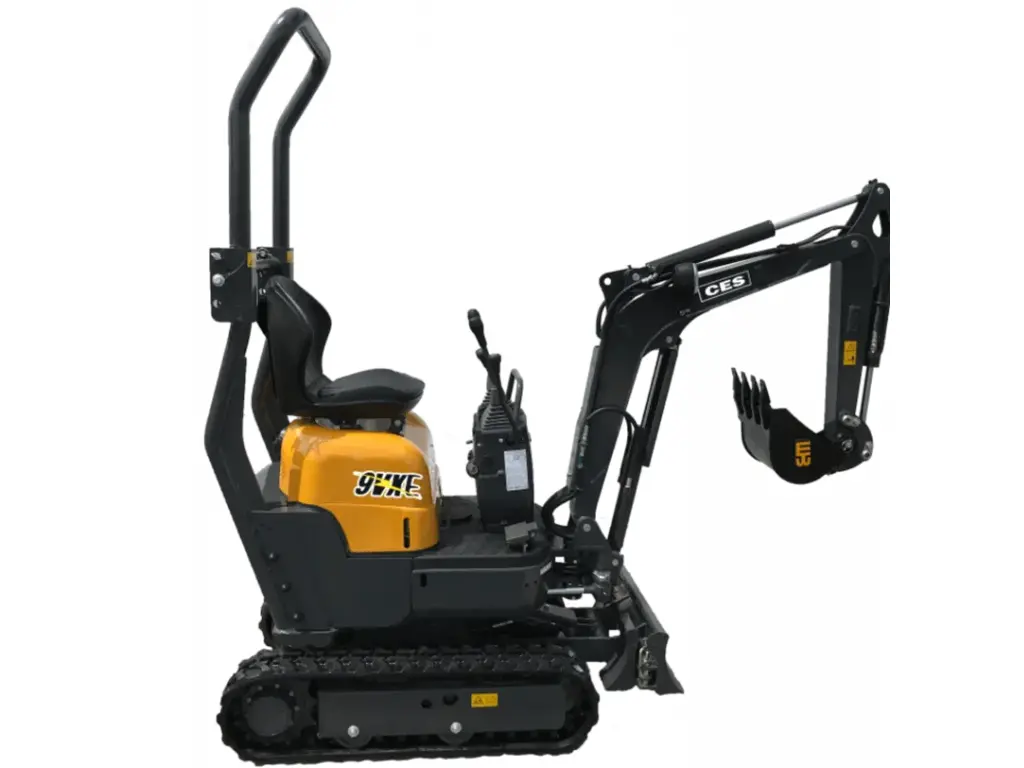

KATO 9VXE ELECTRIC MINI EXCAVATOR
CLEAN, COMPACT & ZERO-EMISSIONS PERFORMANCE
The KATO 9VXE Electric Mini Excavator delivers powerful, quiet, and emission-free operation in an ultra-compact, zero tail swing design. Built for residential, indoor, and tight-access jobsites, the 9VXE is a faster and easier alternative to manual labor, shovels, or wheelbarrows. Its expandable rubber tracks retract to just 27.5 inches, allowing easy access through gates, doorways, and narrow corridors.
Equipped with a 5 HP Baldor electric motor, fold-down canopy, push blade, and front-mounted auxiliary hydraulics, the 9VXE offers impressive digging capability in a small footprint. A 100-foot power cord, 2-speed travel, and strong 2,360-lb bucket digging force make this electric mini excavator ideal for landscaping, utility work, renovation projects, and indoor applications where noise and emissions must be minimized.
KEY FEATURES & BENEFITS
-
Operating weight: 2,060 lbs (transport weight: 1,885 lbs)
-
Zero tail swing design for confined work areas
-
Expandable rubber tracks: 27.5″–37.5″
-
Bucket capacity: 8 cu. ft., bucket width: 12″
-
Max digging depth: 5’2”, max digging radius: 9’9”
-
Max bucket digging force: 2,360 lbs
-
2-speed travel: 1.1 / 2.2 mph, swing speed: 8.7 RPM
-
Electric motor: Baldor 5 HP, 208–480V, 50-amp power supply
-
Boom offset with hydraulic cylinder, swing angle: 50° left / 90° right
-
Gear-type hydraulic system with 5.85 GPM auxiliary flow
-
Standard backfill blade: 27.5” x 11”, lift/drop: 9” / 8”
-
Fold-down canopy and included 100-ft power cord
The KATO 9VXE Electric Mini Excavator provides quiet, clean, and efficient performance with the maneuverability needed for tight spaces—making it the ideal solution for indoor construction, residential landscaping, and environmentally sensitive jobsites.
SPECS
Specifications
| Max. digging radius | 9’9’’ |
| Max. digging depth | 5’2’’ |
| Max. digging height | 9’0’’ |
| Max. dumping height | 6’6’’ |
| Max. vertical digging depth | 3’10’’ |
| Min. front turning radius | 4’0’’ |
| At right boom swing | 3’1’’ |
| Bucket capacity | 8 cu. ft. |
| Bucket width | 12’’ |
| Operating weight | 2,060 lbs |
| Transportation weight | 1,885 lbs |
| Swing speed | 8.7 rpm |
| Travel speed (lowhight) | 1.1 2.2 mph |
| Gradeability | 30o |
| Ground pressure | 3.8 psi |
| Max. bucket digging force | 2,360 lbs |
Motor
| Model | Baldor 5 hp |
| Rated output | 208-480 volt |
Boom Swing System
| Type | Boom offset with hydraulic cylinder |
| Swing angle (LR) | 50° / 90° |
Hydraulic System
| Pressure | 2350 psi |
| Pump hydraulic flow | 2.93 galmin x2 |
| Pump Type | Gear |
| Auxiliary Flow | 5.85 gal |
Dozer Blade
| Size | 27.5″ x 11″ |
| Lift Above ground / Drop Below Ground | 9″ / 8″ |
