Kato 85V5 Compact Excavator

Description

DESCRIPTION

12/25

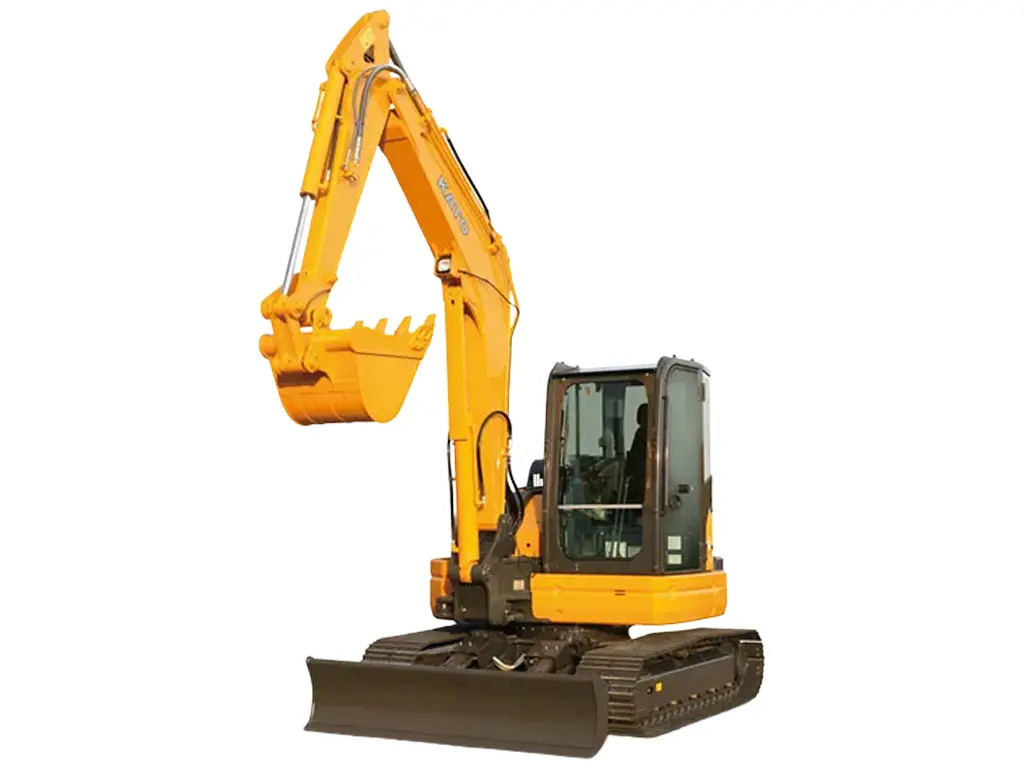

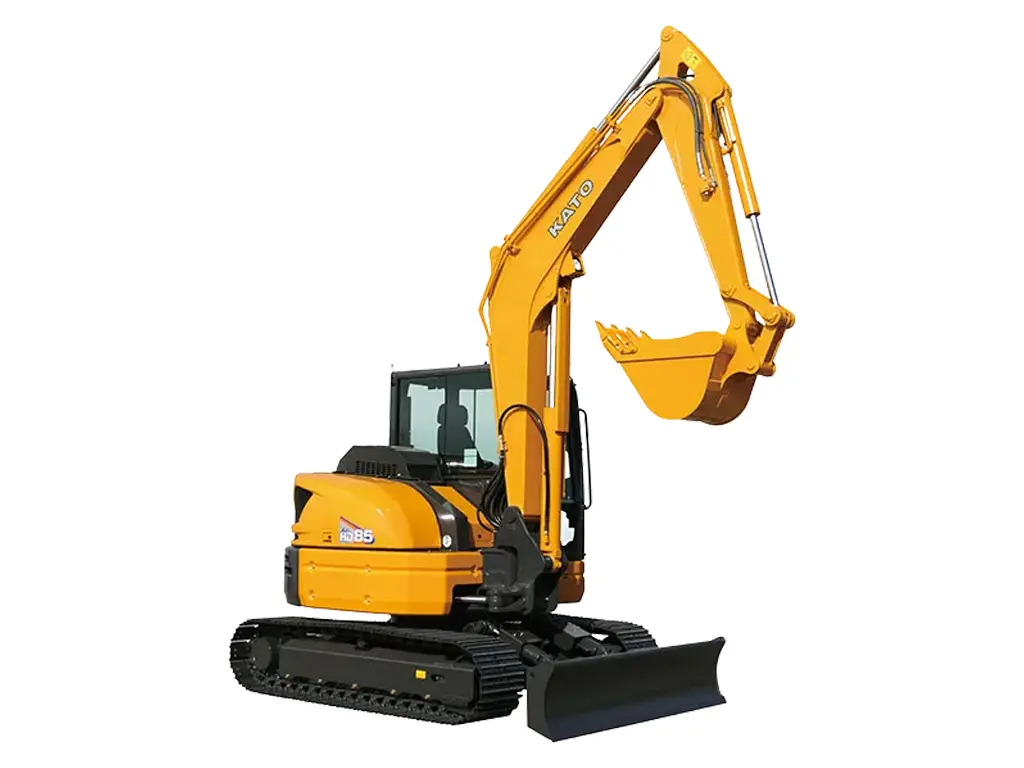

85V5 MINI EXCAVATOR

ZERO TAIL SWING POWER WITH EXCEPTIONAL COMFORT & STABILITY

The 85V5 Mini Excavator is the largest and most powerful machine in the IHI/Compact Excavator Sales mini excavator lineup, delivering outstanding performance for demanding jobsites. With an operating weight of up to 19,595 lbs and a zero-tail-swing design, the 85V5 provides maximum digging power while maintaining exceptional maneuverability in tight work areas.

Built for productivity and stability, the 85V5 comes standard with an additional 900 lb counterweight, improving balance and lifting confidence. Powered by a reliable 57 HP Yanmar engine, this excavator delivers smooth, responsive hydraulic performance and impressive breakout force. Its compact 7’3″ overall width makes it ideal for urban construction, utilities, and confined job sites.

---

OPERATOR COMFORT & CONTROL

• Spacious wide cab—the largest in its class

• Excellent visibility for safer operation

• Ergonomic controls designed to reduce operator fatigue

• Smooth hydraulic response for precise digging

---

POWER & PERFORMANCE

• Engine: Yanmar 4TNV98C – 57 HP @ 2100 RPM

• Max bucket digging force: 12,364 lbs

• Bucket capacity: 8.8 ft³

• Swing speed: 9 RPM

• Travel speed (low/high): 1.6 / 2.7 mph

• Gradeability: 30°

---

HYDRAULIC & BOOM SYSTEM

• Hydraulic pressure: 3,550 psi

• Total hydraulic flow: 81 GPM

• 1st auxiliary hydraulic flow: 20 GPM

• Offset boom with hydraulic cylinders

• Boom swing angle: 50° left / 80° right

---

DOZER BLADE

• Blade size: 1’8″ x 7’3″

• Lift above ground: 1’4″

• Drop below ground: 1’5″

---

KEY SPECIFICATIONS

• Operating weight: 19,595 lbs

• Transport weight: 18,673 lbs

• Ground pressure: 4.5 psi

• Fuel tank capacity: 29 gal

The 85V5 Mini Excavator sets a new benchmark for power, stability, and operator comfort in a zero-tail-swing compact excavator—perfect for contractors who need maximum performance in restricted spaces.

SPECS

Specifications

Bucket Capacity	8.8 ft3
Bucket Width	30”
Operating Weight	19,595 lbs.
Transportation Weight	18673 lbs.
Swing Speed	9 rpm
Travel Speed (low/high)	1.6 / 2.7 mph
Gradeability	30°
Ground Pressure	4.5 psi
Max Bucket Digging Force	12, 364 lbs.

Engine

Model	YANMAR 4TNV98C
Rated output	57 hp @ 2100 rpm
Fuel Tank Capacity	29 gal

Boom Swing System

Type	Offset Boom w/ Hydraulic Cyl.
Swing Angle (L / R)	50°/80°

Hydraulic System

Pressure	3550 psi
Hydraulic Flow	81 gpm
1st Line Max Auxiliary Flow	20 gpm

Dozer Blade

Size	1’ 8” x 7’ 3”
Lift Above ground / Drop Below Ground	1’ 4” / 1’ 5”
