Kato HD512LC-7 Hydraulic Excavator

Description

DESCRIPTION

12/25

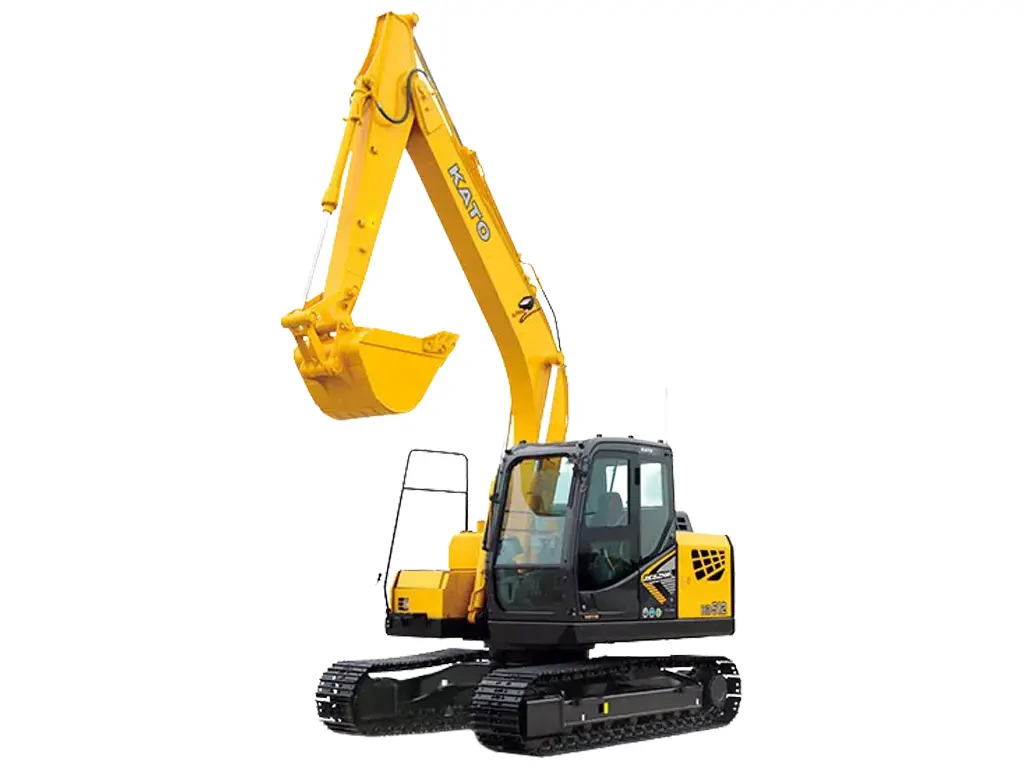

KATO HD512LC-7 EXCAVATOR

POWERFUL LARGE HYDRAULIC EXCAVATOR WITH OPERATOR COMFORT

The KATO HD512LC-7 Excavator delivers high-performance hydraulic power, precise control, and exceptional operator comfort, making it ideal for construction, utility, and excavation work. Designed with a pressurized cab, retractable windshield, and ergonomic controls, the HD512LC-7 ensures smooth operation while reducing operator fatigue.

Equipped with a 7″ LCD touchscreen monitor, centralized switches, and a responsive four-pump hydraulic system, this excavator offers fast, efficient digging and dual auxiliary hydraulics for attachment versatility. Maintenance is simple with large service covers, an easy-access fuel system, and a spacious toolbox for tools and parts.

---

OPERATOR COMFORT & CONTROL

• Pressurized cab with heat and ventilation

• Large 7″ touchscreen monitor for machine data

• Centralized switches for easy operation

• Retractable windshield for improved visibility

• Safety lock lever and battery disconnect

---

POWER & PERFORMANCE

• Engine: Isuzu 4JJ1X Tier 4 Final – 105 HP

• Arm digging force: 15,512 lbs

• Bucket digging force: 21,132 lbs

• Max drawbar pull: 24,728 lbs

• Travel speed high/low: 3.6 / 2.1 mph

• Gradeability: 35°

---

HYDRAULIC SYSTEM

• Dual pumps: 2 x 33.3 gpm

• Max system pressure: 4,554 psi

• Max digging pressure: 4,771 psi

• Boom swing system completely greased and enclosed

---

MAINTENANCE & SPECIFICATIONS

• Operating weight: 28,429 lbs

• Fuel tank: 73 gal

• Hydraulic oil tank: 41.7 gal

• DEF tank capacity: 14.5 gal

• Ground pressure: 5.94 psi

The KATO HD512LC-7 combines high digging power, precise hydraulic response, and operator-focused features to deliver exceptional performance in a wide range of applications.

SPECS

Specifications

Max swing speed	13.0/min
Travel speed high/low	3.6/2.1 mph
Gradeability	35º
Max drawbar pull	24,728 lbs
Arm digging force	15,512 lbs
Bucket digging force	21,132 lbs
Fuel tank	73 gal
Cooling system	5.5 gal
Engine oil	5.17 gal
DEF tank capacity	14.5 gal
Track drive	2x .55 gal
Hydraulic oil tank	41.7 gal
Operating weight	28,429 lbs
Ground Pressure	5.94 psi

Engine

Model	Isuzu 4JJ1X Tier 4 Final
Rated output	105 HP@2000rpm
Starter/Alternator	24 Volt
Max torque	277 lbf-ft/1800 rpm

Boom Swing System

Max swing speed	13.0/min
Lubrication	Completely housed and greased bathed

Hydraulic System

System flow	2 x 33.3 g/min
Max system psi	4554 psi
Max digging psi	4771 psi
