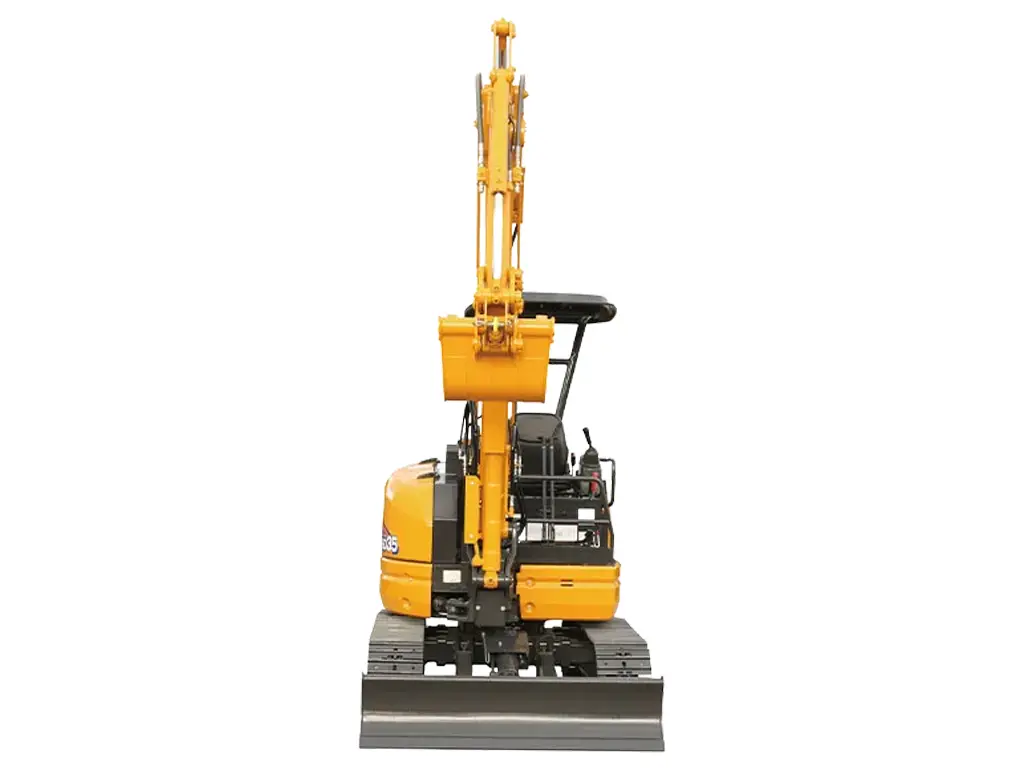

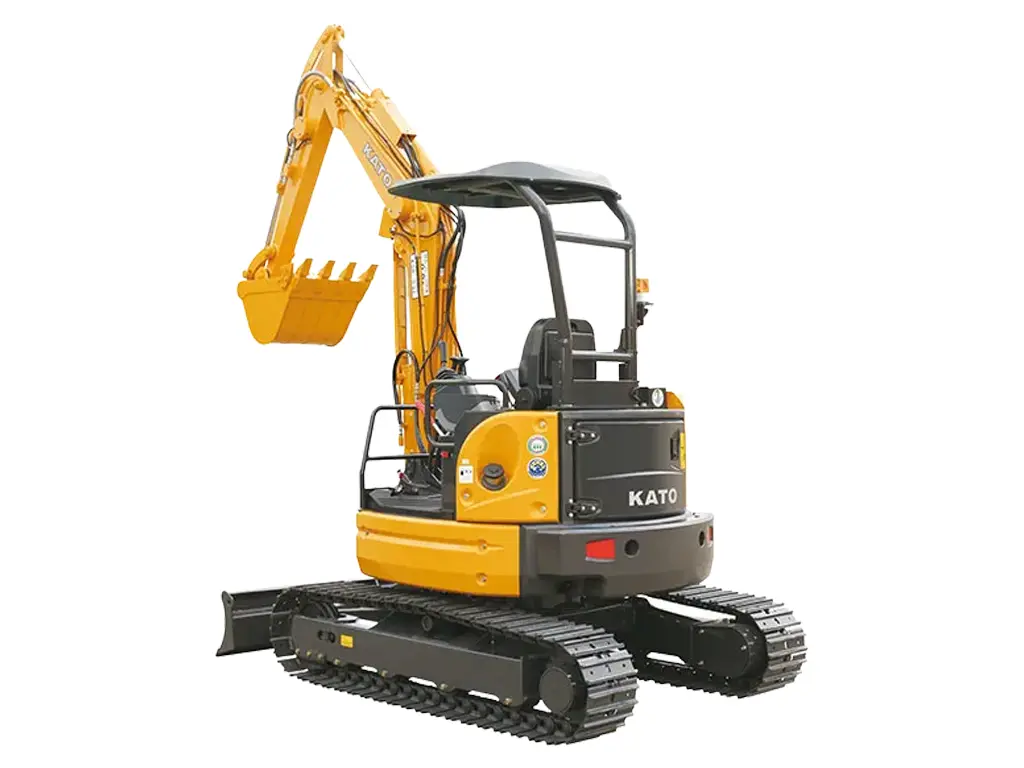

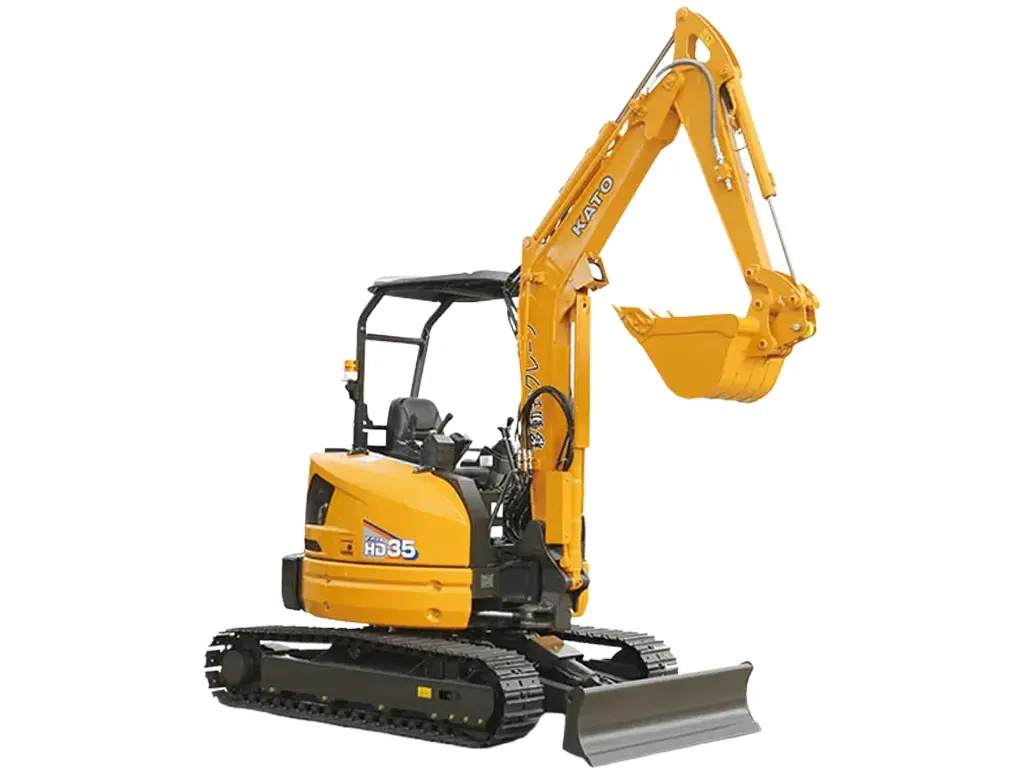

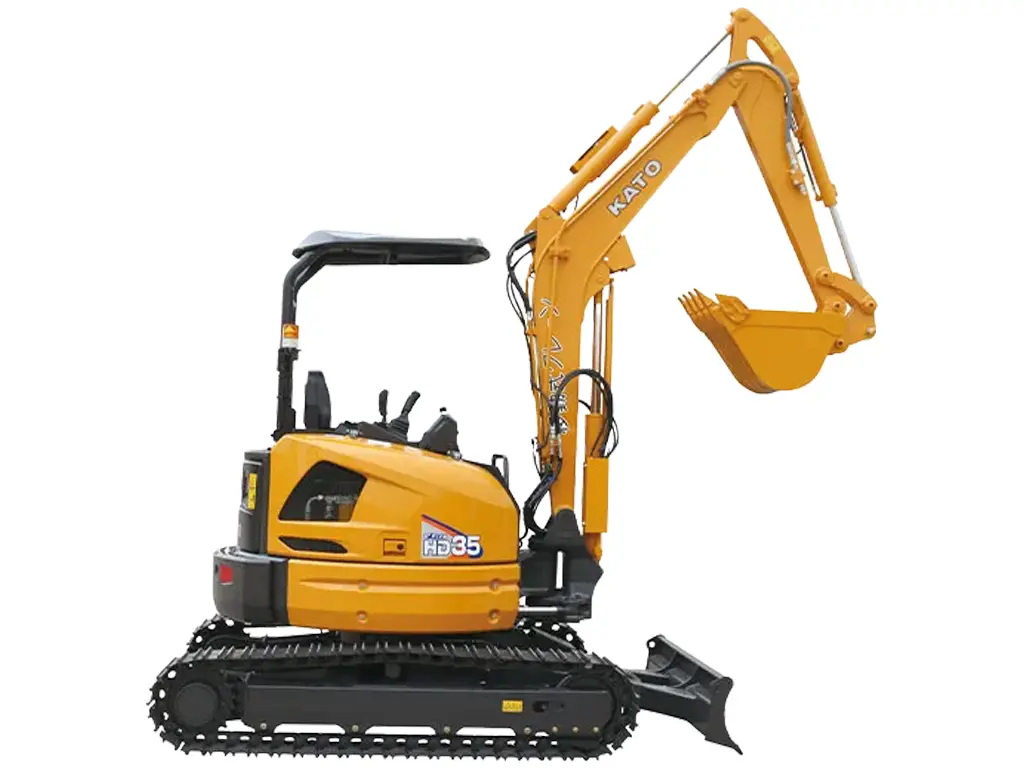

KATO 35V5 MINI EXCAVATOR
COMPACT POWER, PRECISION & OPERATOR COMFORT
The KATO 35V5 Mini Excavator combines zero tail swing performance with increased digging force, responsive hydraulics, and exceptional stability. With a 10% boost in digging power and a fast-acting 4-pump hydraulic system, the 35V5 is perfect for construction, landscaping, utilities, and tight-space excavation projects where precision and maneuverability are essential.
Designed for operator comfort and ease-of-use, the 35V5 features smooth hydraulic pilot controls, fuel-efficient Yanmar power, and a spacious operating cabin. Safety features such as an auto-parking brake and neutral engine-start system provide reliable error prevention for safer operation. With a compact footprint, versatile boom swing, and strong breakout force, this mini excavator is ready to tackle any job efficiently and effectively.
KEY FEATURES & BENEFITS
-
Operating weight: 8,082 lbs
-
Bucket capacity: 3.5 ft³, width: 24″
-
Bucket digging force: 7,688 lbs
-
Swing speed: 9 RPM, travel speed (low/high): 1.7 / 2.9 mph
-
Gradeability: 30°, ground pressure: 4.4 psi
-
Offset boom with hydraulic cylinder, boom swing angle: 50° left / 80° right
-
Total hydraulic system flow: 25 GPM, max auxiliary flow: 16 GPM
-
Engine: YANMAR 3TNV88F, 23 HP @ 2200 RPM, fuel tank: 11 gal
-
Standard dozer blade: 1’3” x 5’1”, lift/drop: 1’3” / 1’6”
-
Zero tail swing design for tight work areas
The KATO 35V5 Mini Excavator delivers precision, power, and durability in a compact, highly maneuverable package—ideal for operators who demand high productivity in confined jobsite environments.
SPECS
Specifications
| Bucket Capacity | 3.5 ft3 |
| Bucket Width | 24″ |
| Operating Weight | 8,082 lbs. |
| Transport Weight | 7,606 lbs. |
| Swing Speed | 9 rpm |
| Travel Speed (Low/ High) | 1.7 / 2.9 mph |
| Gradeability | 30° |
| Ground Pressure | 4.4 psi |
| Bucket Digging Force | 7,688 lbs. |
Engine
| Model | YANMAR 3TNV88F |
| Output Rating | 23 hp @ 2200 rpm |
| Fuel Tank Capacity | 11 gal. |
Boom Swing System
| Type | Offset Boom w/ Hydraulic Cyl. |
| Swing Angle (L / R) | 50° / 80° |
Hydraulic System
| Total Hydraulic System Flow | 25 gpm |
| Max Auxiliary Hydraulic Flow | 16 gpm |
Dozer Blade
| Size | 1’ 3” x 5’ 1” |
| Lift Above / Drop Below Ground | 1’ 3” / 1’ 6” |
