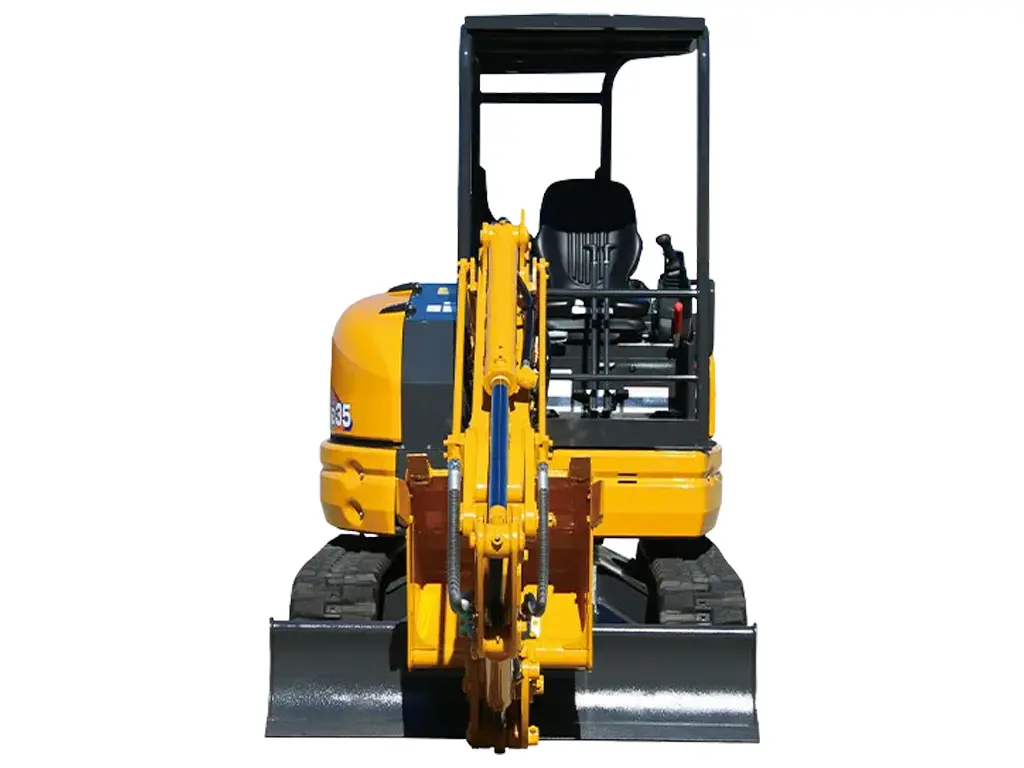

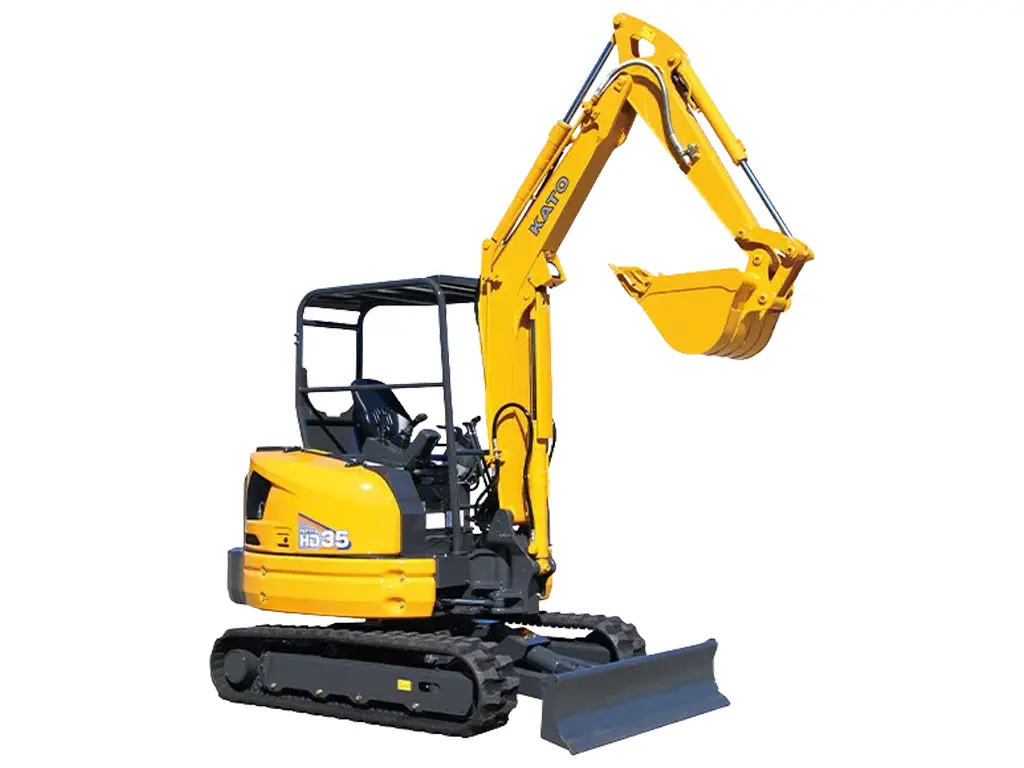

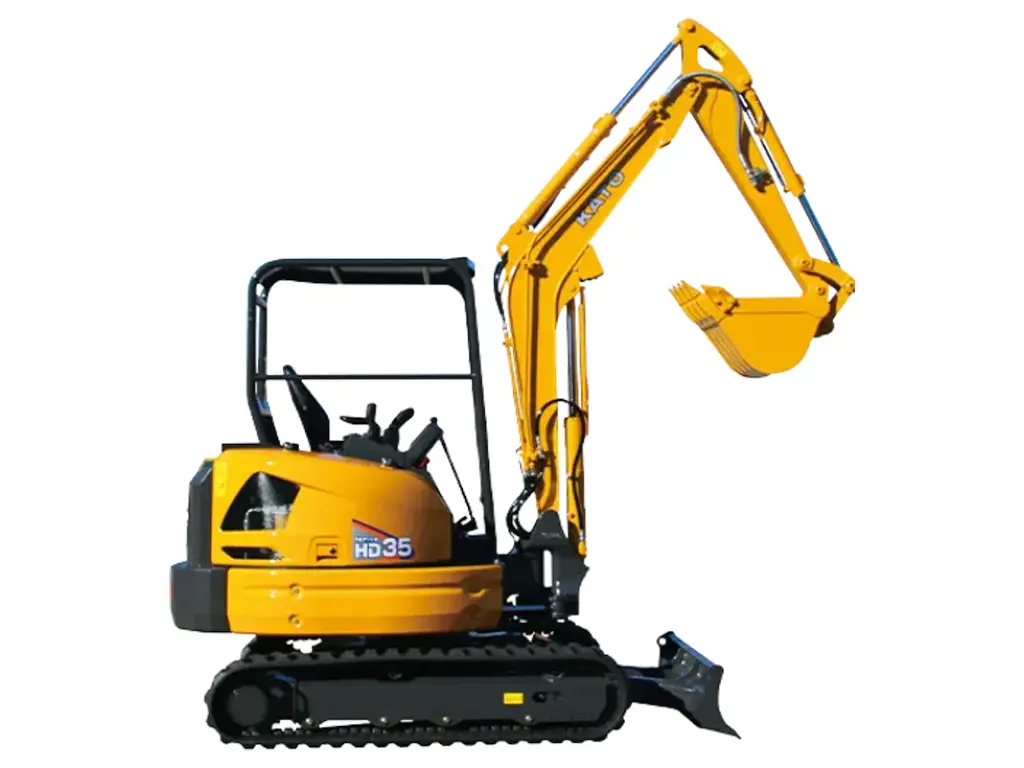

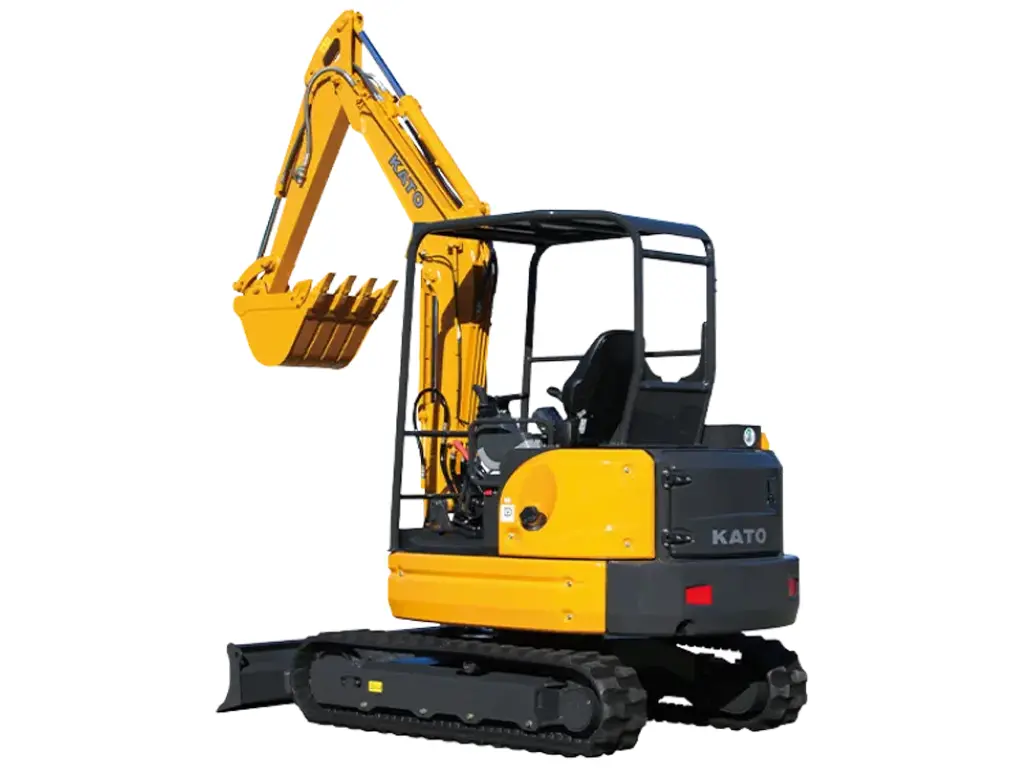

KATO 35N5 MINI EXCAVATOR
POWER, STABILITY & COMFORT IN A COMPACT PACKAGE
The KATO 35N5 Mini Excavator is the next generation of robust 3.5-ton conventional mini excavators, designed for maximum performance, reliability, and operator comfort. Redesigned from the 35N4 model, the 35N5 features a more spacious cabin, enhanced digging force, and a modern, sleek design to handle every job with confidence. Perfect for construction, landscaping, utilities, and confined job sites, this mini excavator offers the ideal balance of compact size and wide working range.
Engineered for efficiency and ease of operation, the 35N5 includes a boom offset with hydraulic cylinder, smooth hydraulic controls, and strong breakout force, allowing precise skimming, loading, and digging in tight spaces. Safety features like ROPS-compliant 4-post canopy, auto-parking brake, and neutral engine-start system ensure maximum protection for the operator. Durable frame construction, reinforced dozer blade, and protected work lights make this excavator reliable for long-term use.
KEY FEATURES & BENEFITS
-
Operating weight: 7,264 lbs
-
Bucket capacity: 0.055–0.12 m³
-
Max bucket digging force: 7,662 lbs
-
Overall width: 61 in, max ground clearance: 11.4 in
-
Swing speed: 9 RPM, travel speed: 2.7 / 4.7 km/h
-
Gradeability: 50%, ideal for slopes and uneven terrain
-
Offset boom with hydraulic cylinder, boom swing angle: 50° left / 90° right
-
Double variable piston pump & gear pump hydraulic system
-
Control valves: 9-section multiple control valves
-
Variable displacement plunger travel motor
ENGINE
-
Model: Yanmar 3TNV88F
-
Rated output: 23.06 HP
-
Fuel tank capacity: 11.1 gallons
DOZER BLADE
-
Blade width: 14″
-
Lift above ground: 15″, drop below ground: 18″
The KATO 35N5 Mini Excavator delivers power, precision, and durability in a compact, highly maneuverable package—perfect for operators who need reliable performance in confined spaces and challenging environments.
SPECS
Specifications
| Bucket Capacity | 0.055-0.12m3 |
| Max. ground clearance | 11.4in |
| Crawler length | 82.7in |
| Operating Weight | 7,264.2LBS. |
| Overall width | 61in |
| Swing Speed | 9.0min-1 |
| Travel Speed (low/high) | 2.7/4.7km/h |
| Gradeability | 50% |
| Max Bucket Digging Force | 7,662 lbs |
Engine
| Model | YANMAR 3TNV88F |
| Rated output | 23.06HP |
| Fuel Tank Capacity | 11.1 gallons |
Boom Swing System
| Type | Boom Offset with Hydraulic Cylinder |
| Swing Angle (L / R) | 50° / 90° |
Hydraulic System
| Pressure | 24.5MPa |
| Pumps | Double variable piston pump and gear pump |
| Control valves | 9 section multiple control valves |
| Travel motor | Variable displacement plunger motor |
Dozer Blade
| Size | 14″ |
| Lift Above ground / Drop Below Ground | 15″ / 18″ |
