Kato HD514MR-7 Heavy-Duty Excavator

Description

DESCRIPTION

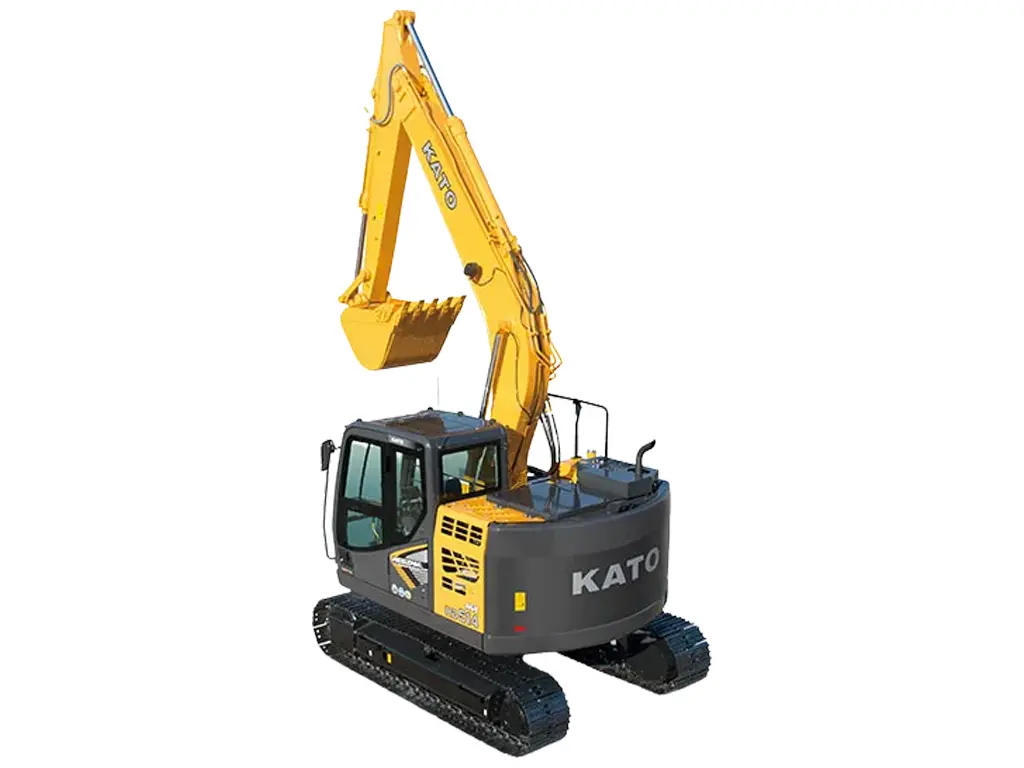

KATO HD514MR-7 EXCAVATOR

MINIMAL RADIUS PERFORMANCE WITH DOZER BLADE & ADVANCED OPERATOR FEATURES

The KATO HD514MR-7 is a compact, powerful minimal-radius tail swing excavator engineered for high productivity in tight job sites. Equipped with a factory-installed dozer blade, this versatile machine excels in trenching, grading, utility work, and urban construction where maneuverability and precision matter most.

Powered by an efficient 105 HP Isuzu 4JJ1X Tier 4 Final engine, the HD514MR-7 delivers strong digging performance with smooth, fast hydraulic response. Dual auxiliary hydraulics, a two-speed travel system, and steel tracks make this excavator ideal for running attachments and working across demanding terrain.

---

OPERATOR COMFORT & CONTROL

• Fully enclosed cab with heat and air conditioning

• Intuitive 7″ touchscreen monitor for machine data and settings

• Pattern change valve for operator preference

• Side and rearview cameras for improved visibility and safety

• Ergonomic controls with smooth hydraulic response

---

POWER & PERFORMANCE

• Engine: Isuzu 4JJ1X Tier 4 Final – 105 HP

• Bucket digging force: 21,132 lbs

• Arm digging force: 15,511 lbs

• Max drawbar pull: 24,504 lbs

• Two-speed travel: 3.6 / 2.1 mph

• Gradeability: 35°

---

HYDRAULIC SYSTEM

• Dual pumps: 2 x 33.3 gpm

• Max system pressure: 4,554 psi

• Max digging pressure: 4,771 psi

• Completely enclosed, grease-bathed boom swing system

---

KEY SPECIFICATIONS

• Operating weight: 31,085 lbs

• Fuel tank: 73 gal

• Hydraulic oil tank: 41.7 gal

• DEF capacity: 14.5 gal

• Ground pressure: 6.38 psi

The KATO HD514MR-7 Excavator delivers the perfect balance of compact design, powerful hydraulics, and operator-focused features—making it an ideal solution for contractors working in confined spaces.

SPECS

Specifications

Max swing speed	13.0/min
Travel speed high/low	3.6/2.1 mph
Gradeability	35º
Max drawbar pull	24,504 lbs
Arm digging force	15,511 lbs
Bucket digging force	21,132 lbs
Fuel tank	73 gal
Cooling system	5.5 gal
Engine oil	5.17 gal
DEF tank capacity	14.5 gal
Track drive	2 x .55 gal
Hydraulic oil tank	41.7 gal
Operating weight	31,085 lbs
Ground Pressure	6.38 psi

Engine

Model	Isuzu 4JJ1X Tier 4 Final
Rated output	105HP@2000rpm
Starter/Alternator	24 Volt
Max torque	277 lbf-ft/1800 rpm

Boom Swing System

Max swing speed	13.0/min
Lubrication	Completely housed and grease bathed

Hydraulic System

System flow	2 x 33.3 g/min
Max system psi	4554 psi
Max digging psi	4771 psi
