Kato 60V5 Compact Excavator

Description

DESCRIPTION

12/25

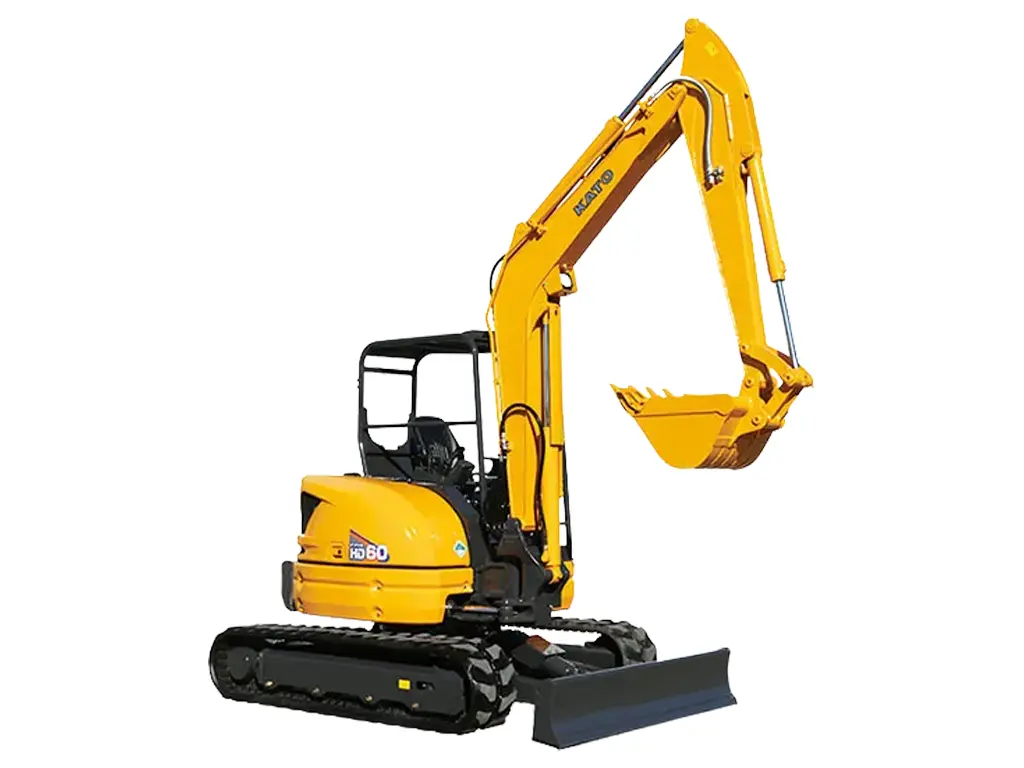

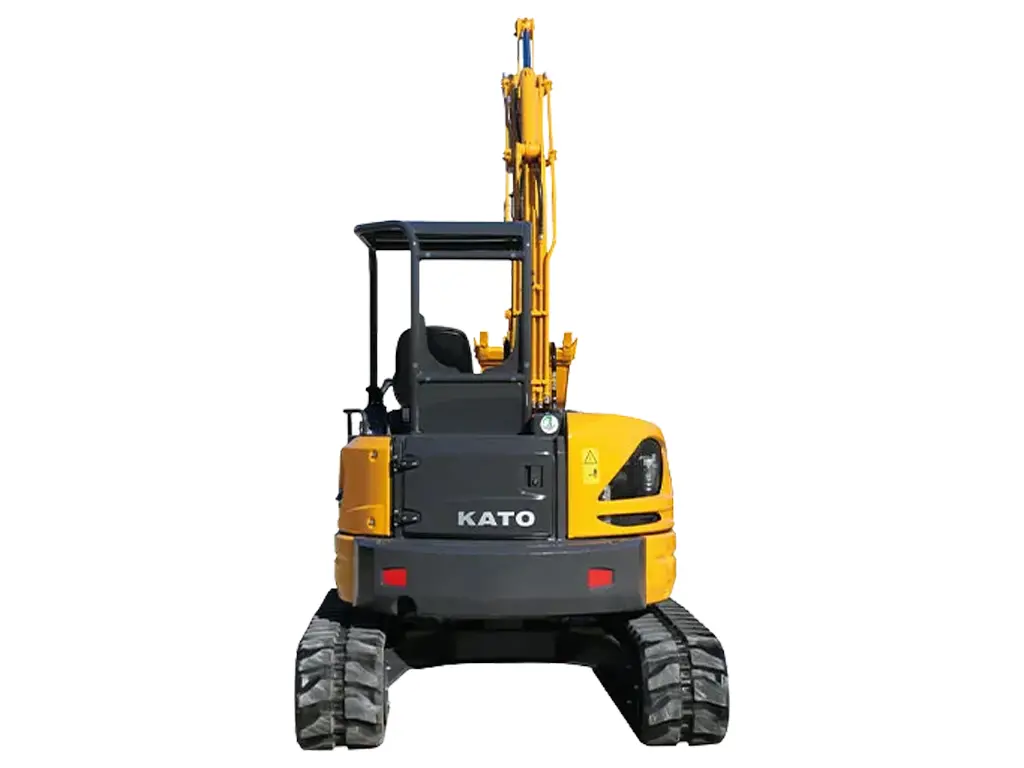

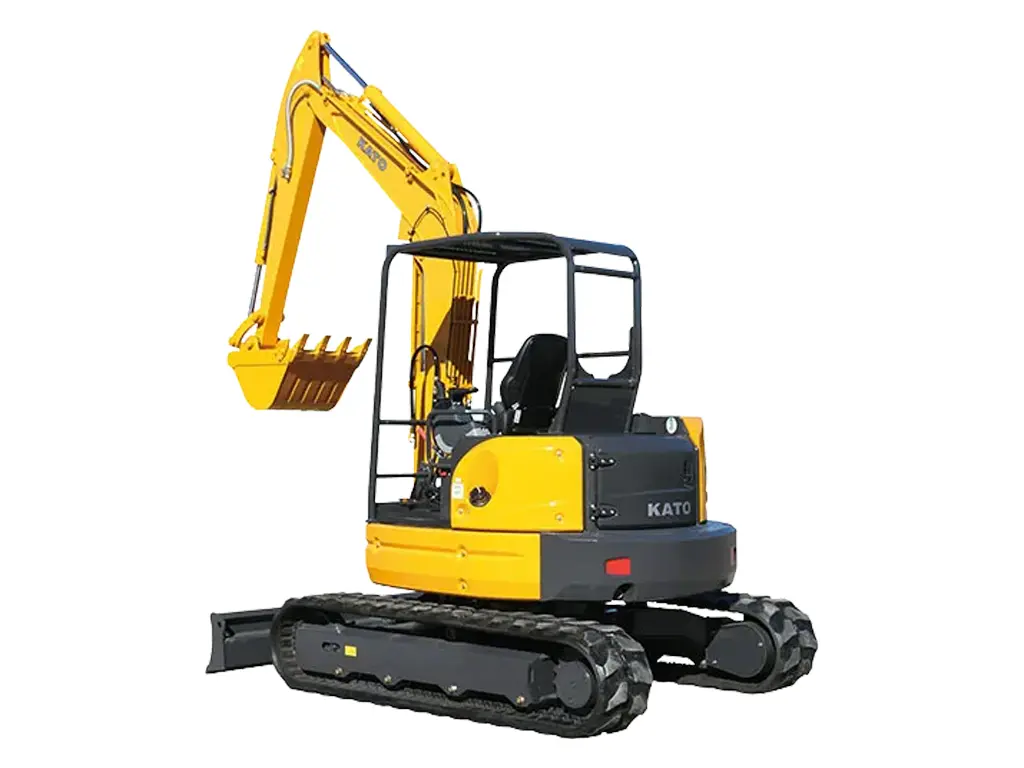

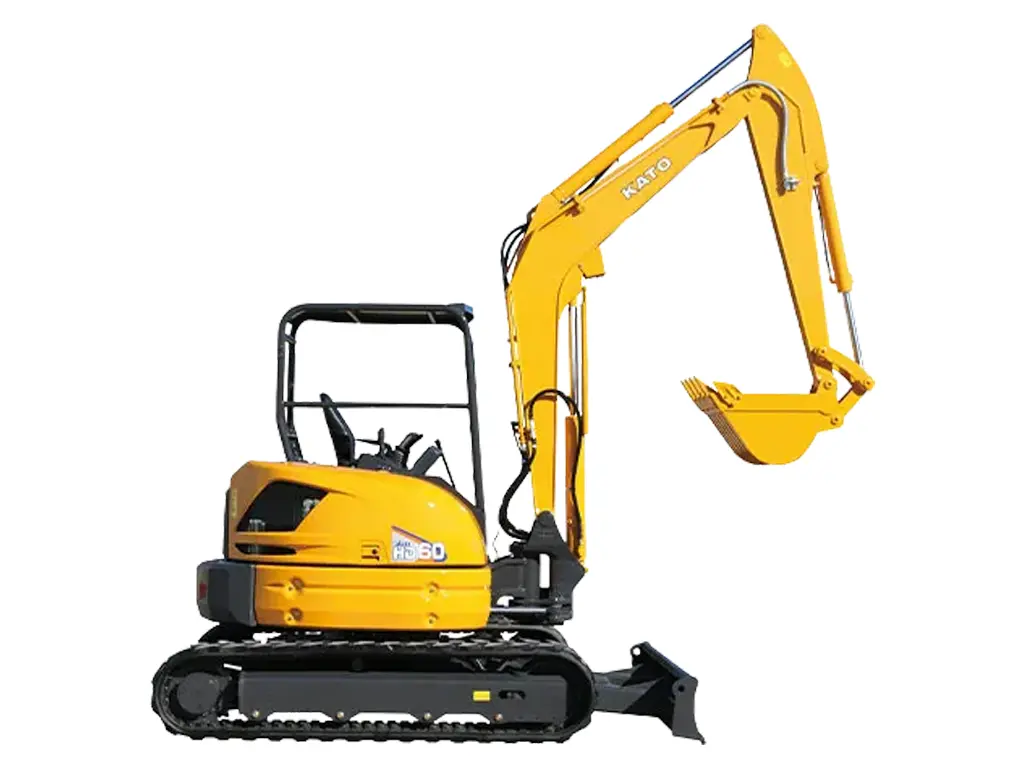

KATO 60V5 MINI EXCAVATOR

ZERO TAIL SWING POWER WITH COMFORT, CONTROL & EFFICIENCY

The 60V5 Mini Excavator from the V5 Series delivers exceptional digging power, smooth hydraulic response, and outstanding operator comfort in a compact, zero tail swing design. Built for productivity in tight spaces, the 60V5 features a 10% increase in digging force and a quick-response 4-pump hydraulic system, making it ideal for construction, utility, landscaping, and site prep applications.

Powered by a fuel-efficient Kubota V2403 engine, the 60V5 is easy to operate, simple to maintain, and designed with advanced safety features including auto-parking brake and neutral engine start to help prevent operator error. Its offset boom and compact footprint provide excellent maneuverability without sacrificing performance.

---

OPERATOR COMFORT & SAFETY

• Zero tail swing for safe operation in confined areas

• Ergonomic, easy-to-use controls

• Auto-parking brake and neutral engine-start system

• Smooth, responsive hydraulic performance reduces operator fatigue

---

POWER & PERFORMANCE

• Engine: Kubota V2403-CR-E5B – 43.5 HP @ 2400 RPM

• Bucket digging force: 10,165 lbs

• Bucket capacity: 6.4 ft³

• Swing speed: 9.3 RPM

• Travel speed (low/high): 1.8 / 2.9 mph

• Gradeability: 30°

---

HYDRAULIC & BOOM SYSTEM

• Total hydraulic flow: 43 GPM

• Max auxiliary hydraulic flow: 16 GPM

• Offset boom with hydraulic cylinders

• Boom swing angle: 50° left / 80° right

---

DOZER BLADE

• Blade size: 1’3″ x 6’6″

• Lift above ground: 1’6″

• Drop below ground: 1’5″

---

KEY SPECIFICATIONS

• Operating weight: 12,351 lbs

• Transport weight: 11,839 lbs

• Ground pressure: 4.5 psi

• Fuel tank capacity: 17.4 gallons

The 60V5 Mini Excavator combines power, stability, and operator-focused design in a compact zero-tail-swing package—perfect for contractors who demand performance and efficiency on every job.

SPECS

Specifications

Bucket Capacity	6.4 ft3
Bucket Width	24″
Operating Width	12,351 lbs.
Transport Weight	11,839 lbs.
Swing Speed	9.3 rpm
Travel Speed (Low/ High)	1.8 / 2.9 mph
Gradeability	30°
Ground Pressure	4.5 psi
Bucket Digging Force	10,165 lbs.

Engine

Model	Kubota V2403-CR-E5B
Output Rating	43.5 hp @ 2400 rpm
Fuel Tank Capacity	17.4 gallons

Boom Swing System

Type	Offset Boom w/ Hydraulic Cyl.
Swing Angle (L / R)	50° / 80°

Hydraulic System

Total Hydraulic System Flow	43 gpm
Max Auxiliary Hydraulic Flow	16 gpm

Dozer Blade

Size	1’ 3” x 6’ 6”
Lift Above / Drop Below Ground	1’ 6” / 1’ 5”
