DESCRIPTION
6/25
* Clearance Item, WHILE SUPPLIES LAST!

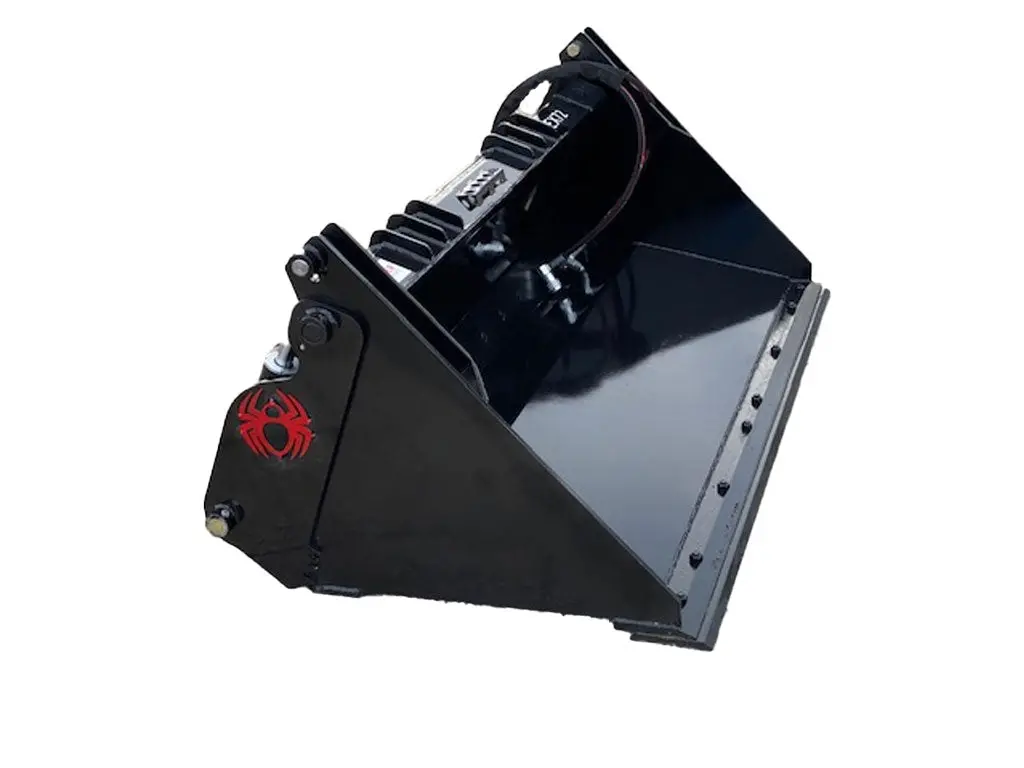

SPIDER EXTREME DUTY 4-IN-1 COMBINATION BUCKET
The EX series extreme duty 4-in-1 combination bucket is the most versatile bucket you can equip a skid steer or compact track loader with. Doze, dig grab or carry with this awesome attachment. Durable construction was the main goal when designing this bucket. Featuring 1/2″ thick steel side plates, 1/4″ reinforced steel floor plate and a reinforce gusseted mounting plate. Multiple edge options are available for this bucket. Choose from welded on edge, BOCE – bolt on cutting edge, teeth or tooth bar.
- Two 21⁄2” X 8″ hydraulic cylinders
- Oversized, greaseable pins
- Front cutting edge 3⁄4” thick X 6″ wide, rear cutting edge (dozing edge) 5⁄8” thick X 6″ wide heat treated bolt-on reversible double edge
- Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
- Treaded step
SPECIFICATIONS
| MODEL | EX60 | EX66 | EX72 |
| WIDTH | 60″ | 66″ | 72″ |
| HEIGHT | 29″ | 29″ | 29″ |
| LENGTH | 38″ | 38″ | 38″ |
| OPENING | 38″ | 38″ | 38″ |
| LB WELD ON | 873 | 921 | 986 |
| LB BOCE | 930 | 982 | 1052 |
| LB TEETH | 960 | 1020 | 1080 |
| STEPS | YES | YES | YES |
| MODEL | EX78 | EX84 | EX90 |
| WIDTH | 78″ | 84″ | 90″ |
| HEIGHT | 29″ | 29″ | 29″ |
| LENGTH | 38″ | 38″ | 38″ |
| OPENING | 38″ | 38″ | 38″ |
| LB WELD ON | 1011 | 1019 | 1067 |
| LB BOCE | 1082 | 1100 | 1150 |
| LB TEETH | 1120 | 1140 | 1200 |
| STEPS | YES | YES | YES |
| MODEL | EX96 | ||
| WIDTH | 96″ | ||
| HEIGHT | 29″ | ||
| LENGTH | 38″ | ||
| OPENING | 38″ | ||
| LB WELD ON | 1115 | ||
| LB BOCE | 1205 | ||
| LB TEETH | 1260 | ||
| STEPS | YES |
SHIPPING
- SINGLE ITEMS USUALLY SHIP IN (3) DAYS OR LESS
