Virnig V50 Hydraulic Scrap Grapple with Self-Leveling Control

Description

DESCRIPTION

9/25

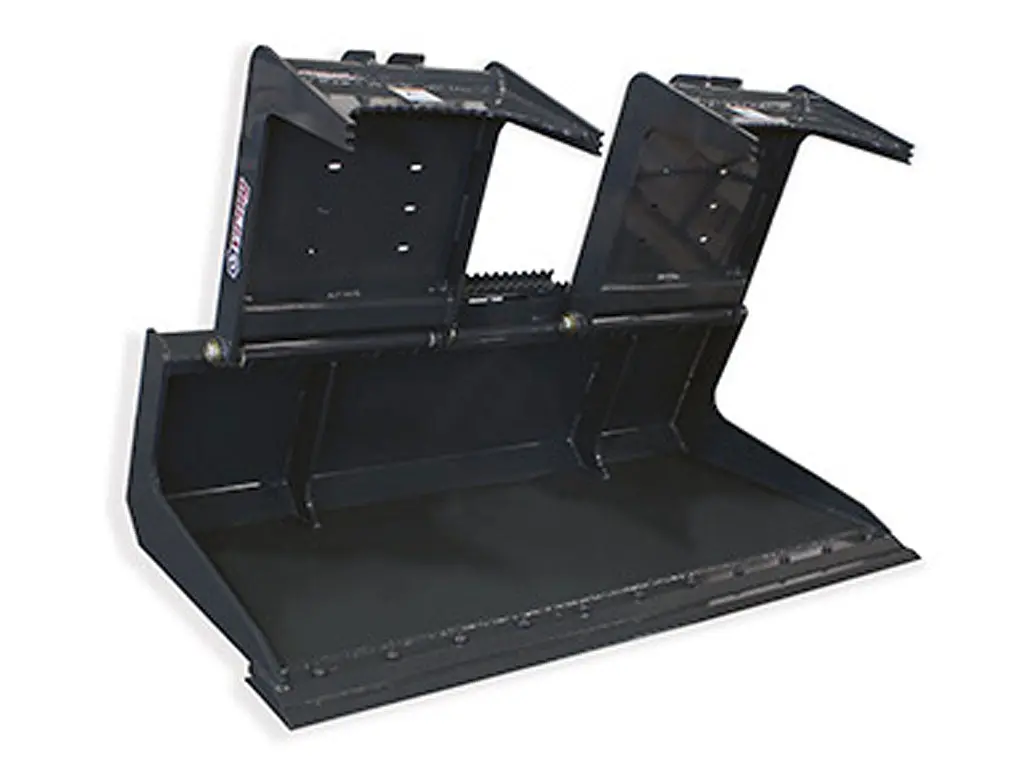

Virnig V50 Scrap Grapple

Skid Steer Attachment

The Virnig V50 Scrap Grapple is a heavy-duty skid steer attachment designed for handling bulky scrap, debris, and irregular materials. Featuring dual independent jaws with separate hydraulic cylinders, each jaw operates independently to securely clamp uneven loads while maintaining consistent pressure. This independent design keeps oddly-shaped objects safely secured during transport.

Built for strength and durability, the V50 Scrap Grapple features 1/4” Grade 50 steel solid-bottom scoops reinforced with two 1/2” thick vertical braces inside the bucket. 2” bore, 8 3/8” stroke cylinders with corrosion-, dent-, and flake-resistant NitroSteel® rods provide long-lasting performance. Greasable 1 1/4” cylinder pins and 1 9/16” hinge pins, along with Teflon® coated bushings, ensure smooth operation at all pivot points. The grapple also includes a 3/4″ x 6″ weld-on cutting edge with holes for optional edges, standard cylinder guards, and a replaceable bolt-on step with aggressive laser-cut steel for safe cab access. A machine-specific hydraulic package protects hose routing for reliable operation.

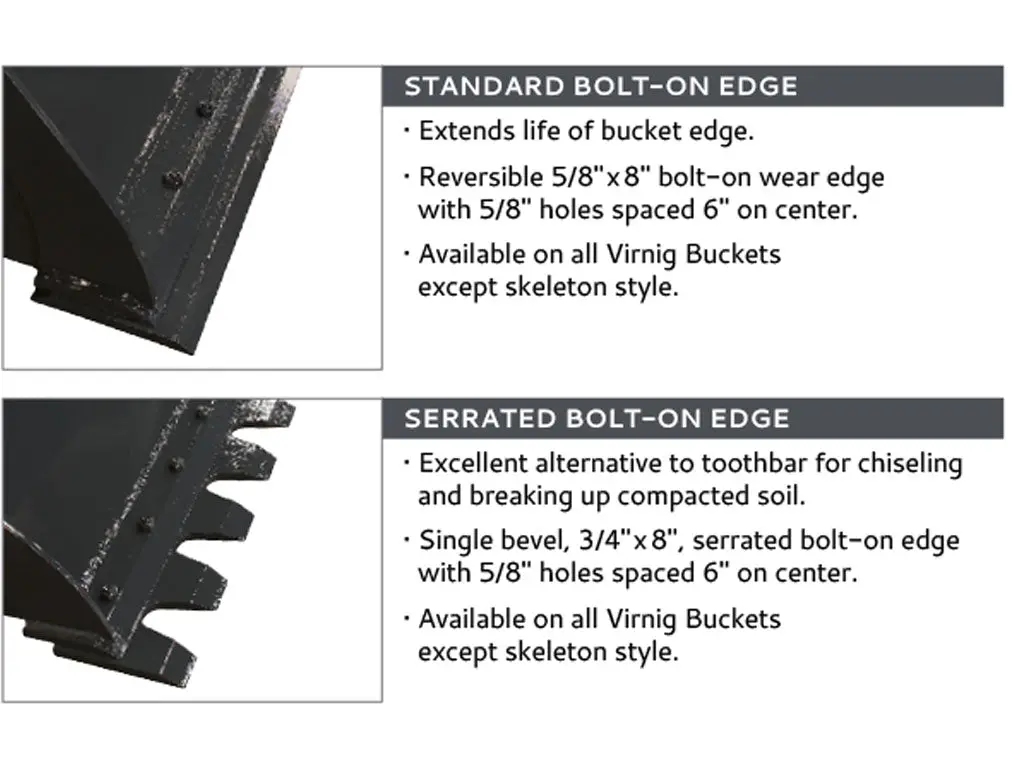

Options:

• Bolt-On Cutting Edge (BOCE)

• Serrated Edge (SE)

Included with Attachment:

• Universal skid steer mounting

• Hoses, couplers, & fittings

• Standard cylinder guard

 SPECS

• Recommended loader capacity – Less than 2400 lbs ROC
• Cylinder Bore / Stroke (in)  2.0 / 8.375
• Cylinder Pins / Hinge Pins Diameter (in) 1.25 / 1.563

Model	60″	66″	72″	78″
Overall Width (in)	61.5	67.5	73.5	79.5
Depth (in)	35.5	35.5	35.5	35.5
Height: Overall / Bucket (in)	27.3 / 20.8	27.3 / 20.8	27.3 / 20.8	27.3 / 20.8
Grapple Jaw Opening (in)	36.9	36.9	36.9	36.9
Structural wear bars under bucket	2	2	2	3
Weight (lbs)	895	930	965	1015

SHIPPING

In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks
