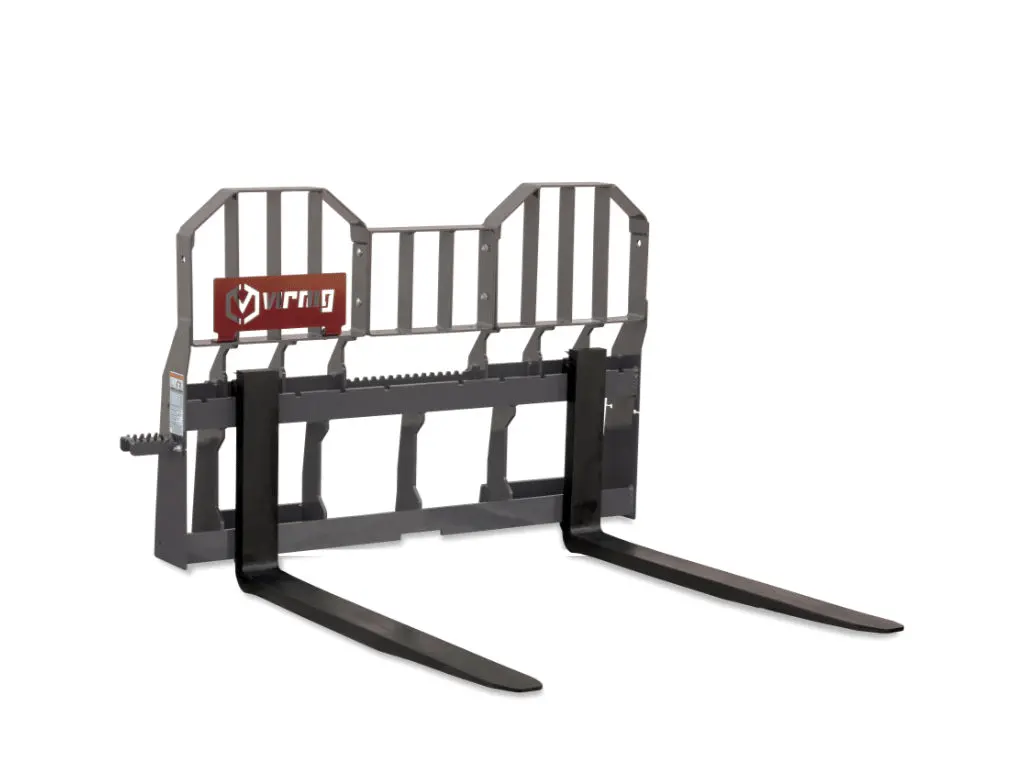

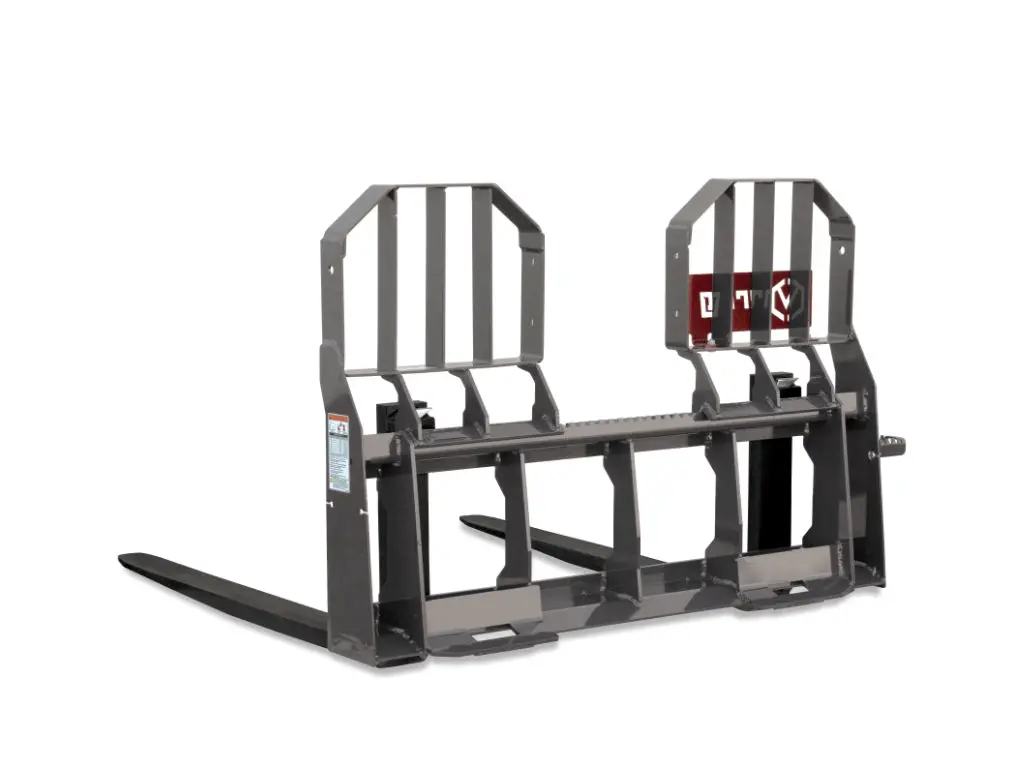

Wider rail for better stability.
- Remove center section to change to a walk-through brickguard.
- Choose from three tine lengths and capacities to match handling and lifting needs.
- Brickguard flush with tines to keep loads secure.
- 1/4” Grade 50 brickguard and 3/4″ beveled rail rated at 6,200 lbs
- Bracing adds strength and is centered on quick tach for easy hookup.
- Standard with adjustable, ITA Class II forged tines. See table below for capacity.
- Bolt-on step installs on either side and allows safer operator entry and exit.
- Walk-Through, Hex-Guard and smaller version also available.
SPECIFICATIONS
| Model | 4240 | 4840 | 4255 | 4855 | 6055 | 4862 | |
| Tine Length (in) | 42 | 48 | 42 | 48 | 60 | 48 | |
| Capacity (lbs) | 4000 | 4000 | 5500 | 5500 | 5500 | 6200 | |
| Frame Width (in) | 54.5 | ||||||
| Overall Height (in) | 37 | ||||||
| Tine Thickness (in) | 1.375 | 1.375 | 1.5 | 1.5 | 1.5 | 1.75 | |
| Approximate Weight (lbs) | 415 | 435 | 435 | 450 | 485 | 465 | |
SHIPPING
In stock items usually ships 3-5 days
Non stock items usually ship 4-6 weeks
