Description
DESCRIPTION
9/25

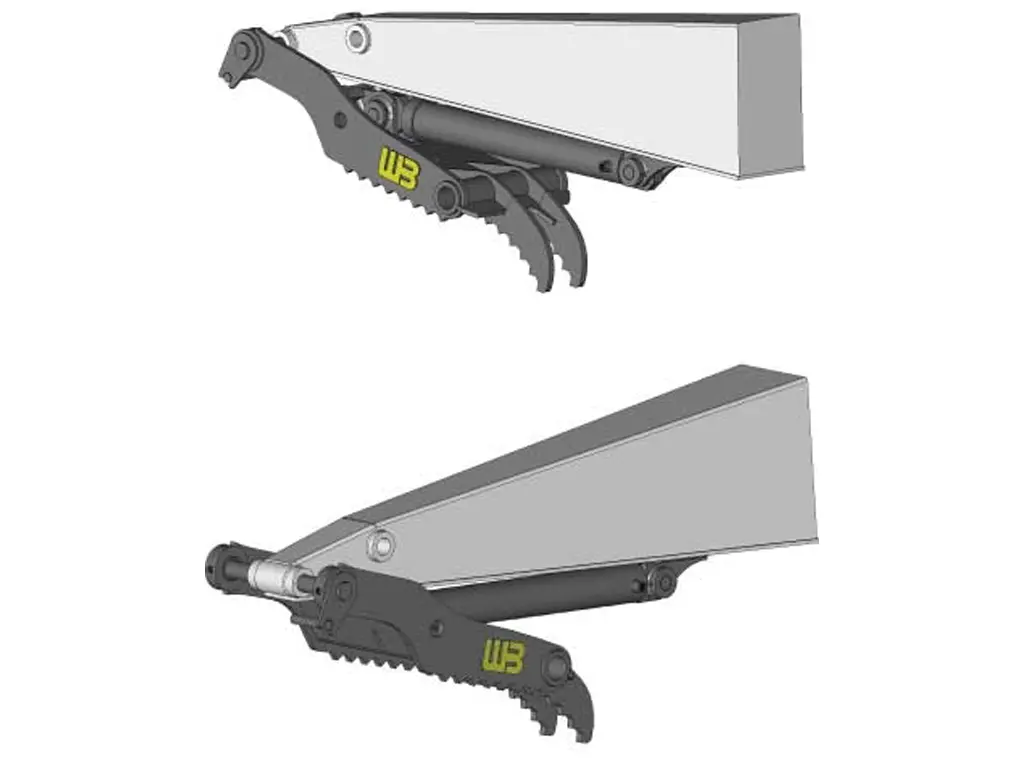

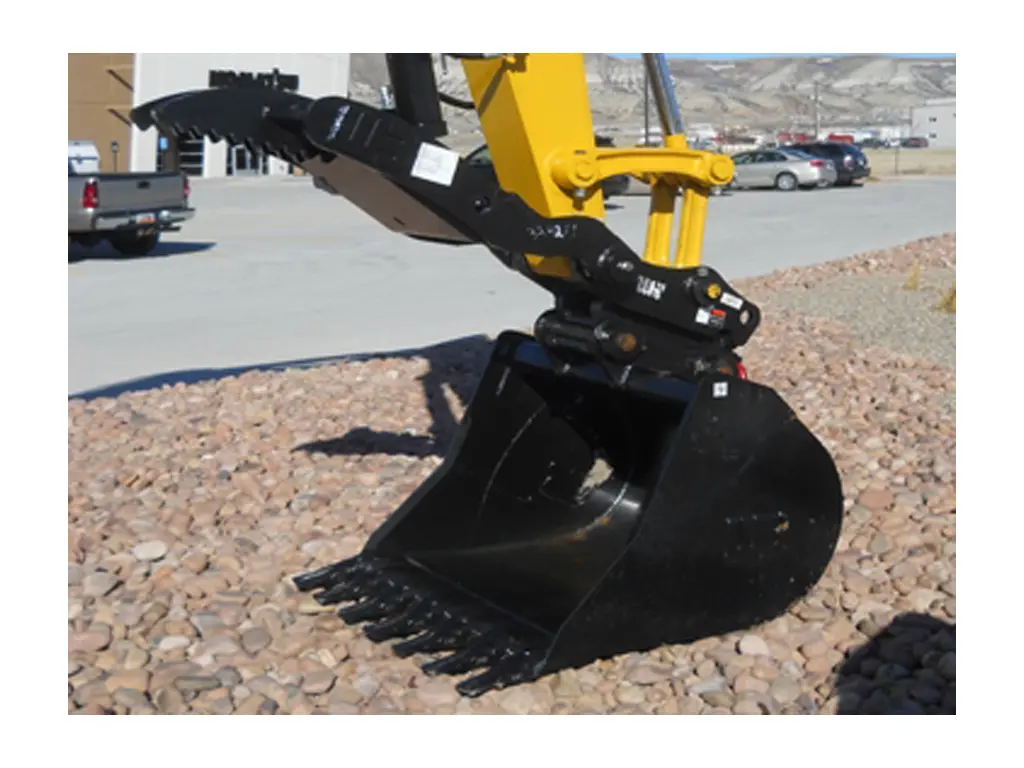

MAIN PIN HYDRAULIC THUMBS
Recommended Applications
Specifically designed to aid in handling or loading irregular shaped objects, debris, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. Not recommended for prying.
Quality Construction
High strength steel is used throughout.
Standard Sizes
Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.
Additional Features
Additional tines optional. Hydraulic or Rigid style available upon request. Special designs are available, please request a quote from your local dealer.
SPECIFICATIONS
| PART # | DESCRIPTION | WEIGHT |
| for case 580N & 590N w/ Standard stick | ||
| *EZG-590N-SH | Main pin multi tined hydraulic | 275 |
| For Case 580N & 590N w/ Extenda-Hoe | ||
| *EZG-590N-E | Main Pin Multi Tined hydraulic | 275 |
| EZG-590N-E series will not work with 580/590 N series OEM hydraulic couplers |
| PART # | DESCRIPTION | WEIGHT |
| EZG-5318-65H | 2 tined stick mounted hydraulic | 195 |
| EZG5318-65R | 2 tined stick mounted rigid | 195 |
| EZG-5318-65 Series will work with 580/590 n series OEM hydraulic couplers |
| PART # | DESCRIPTION | Weight |
| For Case 580SV & new holland B95D w/ extenda-hoe | ||
| EZG580SV-B95D | 2 tine main pin hydraulic thumb | 350 |
